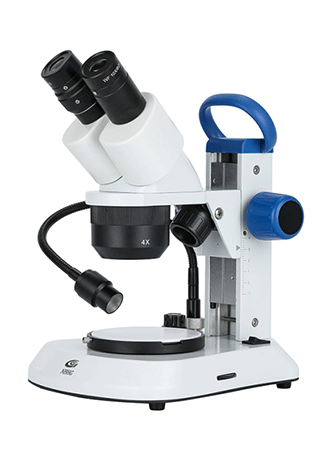

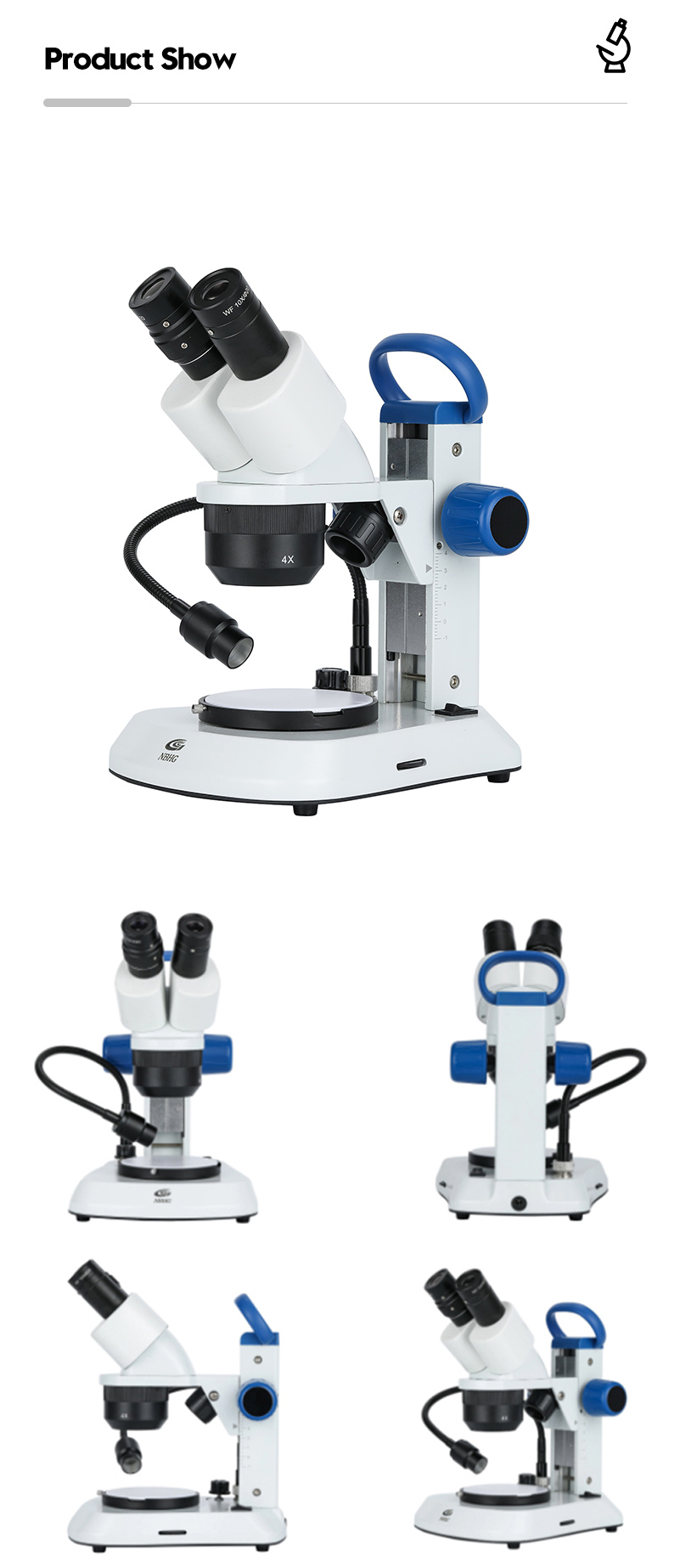

WF10x/20mm Binocular Stereo Microscope Laboratory Microscope for Precision Observation
When I design and recommend a stereo Microscope for daily laboratory or inspection work, I do not look at magnification alone. A microscope can have impressive numbers on a specification sheet, but if the image is tiring to view, focusing is awkward, or the operator has to keep moving the sample to find a comfortable working position, it will quickly become a frustrating tool.
That is why I pay close attention to the optical configuration, binocular viewing, working space, focusing movement, mechanical stability, illumination, and the actual application. Our WF10x/20mm Binocular Stereo Microscope laboratory microscope is developed around these practical needs. It is intended for clear three-dimensional observation, stable focusing, and comfortable inspection of Small Parts and surface details.
At Ningbo Huaguang Precision Instrument Co., Ltd., we manufacture educational microscopes, Industrial Inspection microscopes, professional Jewelry Inspection microscopes, optical components, and precision injection molded parts. Our products are supplied to customers in more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. For us, a microscope is not simply an optical instrument. It is a working tool that needs to perform consistently after it leaves the factory.
The WF10x/20mm configuration is also a familiar specification in stereo microscopy. Commercial stereo microscope systems commonly use WF10X/20mm eyepieces with binocular heads, while the actual total magnification depends on the objective or zoom system used with the eyepieces. For example, published stereo microscope specifications show WF10X/20mm eyepieces combined with different objectives to produce different magnification ranges.
Let me first explain the name in simple language, because this is one point that can easily cause confusion when buyers compare microscope models online.
WF10x/20mm normally describes the eyepiece. “10x” refers to the eyepiece magnification, while “20mm” refers to its field number. It does not automatically mean that the complete microscope provides only 10x magnification. The final magnification depends on the objective or zoom optics used with the eyepiece.
This distinction matters when choosing a laboratory microscope. A WF10x/20mm eyepiece can be used with different objective configurations. One published stereo microscope specification, for example, lists WF10X/20mm eyepieces together with 1x, 2x, 3x, and 4x objectives, producing different total magnifications while retaining the same basic eyepiece specification.
In practical terms, the binocular stereo microscope gives the operator two optical viewing paths instead of forcing the user to observe through one eyepiece. The stereo design creates depth perception, which is especially useful when looking at three-dimensional objects, uneven surfaces, assembled parts, solder joints, mechanical components, jewelry, and other small objects.
That is quite different from simply enlarging a flat image. When I inspect a small component under a stereo microscope, I want to understand not only how large the feature looks, but also where the feature sits on the surface. Depth, edge shape, height difference, and surface structure can all become easier to judge.
This is why stereo microscopes have found a place in electronics, laboratories, education, jewelry inspection, repair work, quality control, and light industrial inspection. Other published WF10X/20mm binocular stereo microscope systems list applications including electronics, metallurgy, jewelry, watchmaking, laboratories, and educational environments.
The basic working principle is straightforward. Light illuminates the sample, the optical system collects the reflected or transmitted light, and the objective and eyepieces enlarge the image so that the operator can inspect details that are difficult to see with the naked eye.
The important part of a stereo microscope is that the two optical paths view the sample from slightly different angles. Your eyes receive two related images, and the brain combines them into a three-dimensional impression. This makes the instrument particularly useful when the sample has height, depth, edges, grooves, holes, or uneven surfaces.
For example, imagine checking a small electronic assembly. With ordinary visual inspection, you may see that a solder joint is present. Under a stereo microscope, you can inspect the shape of the joint, the surrounding component, the edge of the board, and the relationship between neighboring parts. The operator can also use tools around the sample when the working distance and stand configuration provide enough room.
The same idea applies to jewelry inspection. A jeweler may need to examine a stone setting, metal surface, engraving, small scratch, or connection point. A stereo image is useful because the object is not perfectly flat.
For laboratory users, the microscope can also be used for sample observation, dissection-style work, surface inspection, sorting, assembly, and teaching. Published educational stereo microscope specifications show binocular observation, WF10X/20mm eyepieces, and applications in learning environments. :contentReference[oaicite:3]{index=3}
When I explain microscope operation to new users, I normally recommend starting with a comfortable viewing position rather than immediately increasing magnification. If the operator can sit naturally, keep both eyes comfortable, adjust the interpupillary distance, and obtain a sharp image without repeatedly fighting the focus mechanism, the inspection process becomes much easier.
Place the sample securely on the microscope stage.
Choose suitable illumination for the surface or object.
Adjust the binocular viewing position to match the operator's eyes.
Set the diopter adjustment when required.
Start at a practical magnification and focus the image.
Move to higher magnification only when more detail is needed.
Inspect the sample from the required area and record or classify the result.
This sounds simple, and that is exactly the point. A laboratory Microscope Used every day should not require a complicated operating routine.
When developing or evaluating a WF10x/20mm Binocular Stereo Microscope Laboratory Microscope, I focus on the parts that directly affect the operator's working experience.
The binocular head allows the operator to use both eyes during observation. For long inspection sessions, this can feel more natural than continuously working through a single viewing path. The exact comfort level still depends on the individual user, so interpupillary adjustment and diopter adjustment are important details rather than decorative specifications.
Commercial WF10x/20mm Stereo Microscope systems commonly provide adjustable interpupillary distance and diopter compensation. For example, published specifications from SISCO list an adjustable interpupillary range and single-side diopter adjustment, while Labdex lists both interpupillary adjustment and diopter adjustment on its binocular stereo system. :contentReference[oaicite:4]{index=4}
The 20mm field number gives buyers a useful indication of the eyepiece's viewing field. A wider field can make it easier to locate a feature and observe a larger area at once, although the actual field of view also depends on the objective and optical design.
I always recommend looking at the complete optical combination rather than purchasing a microscope based on the eyepiece specification alone. The eyepiece is one part of the system. Objective magnification, working distance, optical quality, illumination, and focusing mechanics all contribute to the actual inspection experience.

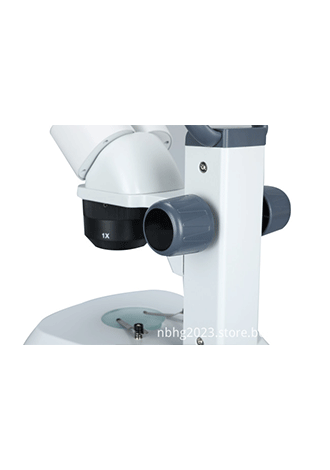

Good focusing is not only about being able to turn a knob. The focus movement should feel controlled enough that the operator can find the sharp point without unnecessary movement of the microscope or sample.
This becomes especially important when inspecting small electronic components, jewelry details, precision mechanical parts, and surface defects. If the microscope shifts every time the operator touches the focusing control, small details can become difficult to judge.
The stereo optical design is one of the biggest practical advantages of this type of microscope. Instead of looking at a magnified image as if it were a flat photograph, the operator can gain a more natural impression of the object's shape and depth.
This makes the system useful for objects that have edges, holes, curves, raised areas, or assembled structures.
A microscope used for several hours needs to be treated differently from a microscope used for five minutes. Viewing angle, eye position, focusing control, sample access, illumination, and mechanical stability all matter.
That is why I prefer to think of the microscope as a complete working station rather than only an optical head.

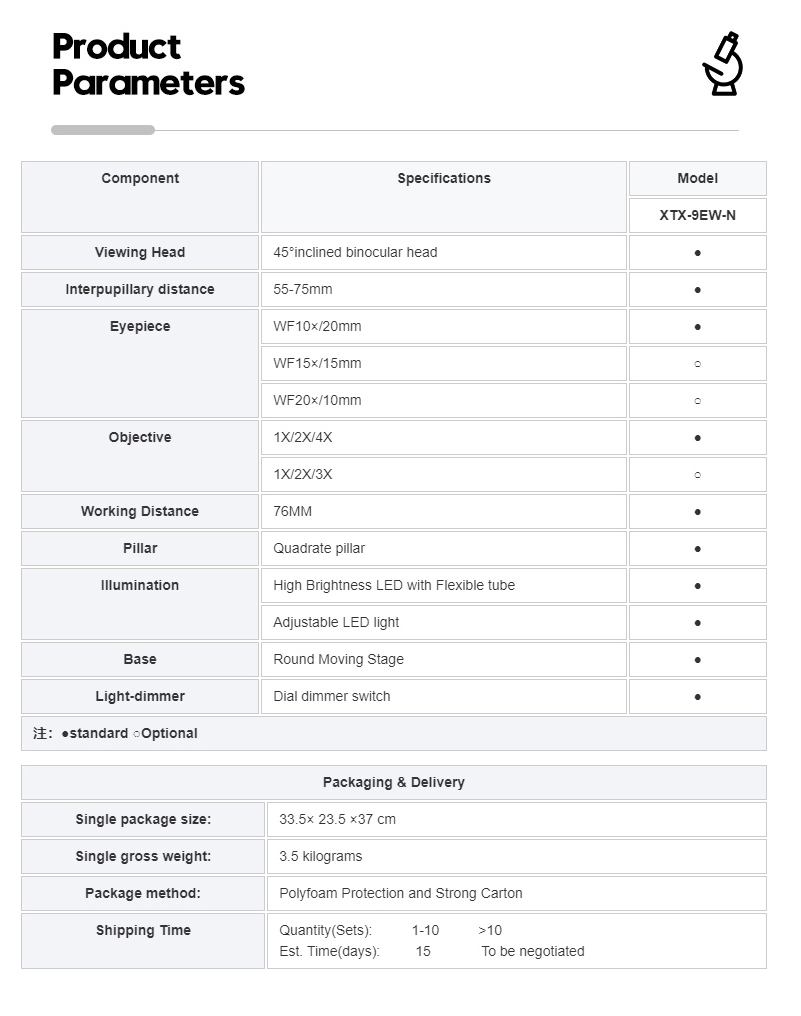

| Feature | What It Means in Practice | Typical Application Value |
|---|---|---|
| WF10x/20mm eyepiece | 10x eyepiece magnification with a 20mm field number | General observation and inspection |
| Binocular head | Observation through two optical paths | Comfortable viewing and depth perception |
| Stereo optical system | Provides a three-dimensional impression of the sample | Small parts and surface inspection |
| Adjustable focusing | Allows the image to be brought into clear focus | Detailed inspection and assembly work |
| Suitable illumination | Provides light needed to see sample details | Different surface and component types |
Source note: The WF10X/20mm eyepiece and binocular stereo configurations shown above are consistent with published commercial stereo microscope specifications from Labdex, SISCO, and Fisherbrand. Actual configuration, magnification, illumination, and working distance vary by model. :contentReference[oaicite:5]{index=5}
There is a common mistake in microscope purchasing: comparing only magnification numbers. In my experience, this can lead to the wrong equipment.
Suppose two microscopes can both produce a high magnification. If one has a very short working distance, poor lighting, difficult focusing, or an uncomfortable viewing position, it may not be the better tool for practical production work.
For a binocular stereo microscope laboratory microscope, I pay attention to the balance between magnification, working distance, field of view, image clarity, mechanical stability, and user comfort.
More magnification is not automatically better. When inspecting a large area, excessive magnification can actually slow the operator down because only a small part of the sample is visible at one time.
For locating a defect, checking an assembly, observing a larger component, or teaching students, a practical lower magnification can be more useful. When the operator needs to inspect a tiny feature, a higher objective may become valuable.
Published systems demonstrate how the same WF10X/20mm eyepiece can be paired with different objectives. One commercial configuration lists 1x, 2x, 3x, and 4x objectives, with corresponding magnification values of 10x, 20x, 30x, and 40x when paired with the 10x eyepiece. :contentReference[oaicite:6]{index=6}
| Example Objective | WF10x Eyepiece | Approx. Total Magnification | Typical Observation Direction |
|---|---|---|---|
| 1x | 10x | 10x | Broader-area observation |
| 2x | 10x | 20x | General precision inspection |
| 3x | 10x | 30x | Smaller component details |
| 4x | 10x | 40x | Fine-detail inspection |
Source: Example optical combinations are based on the published SISCO stereo microscope configuration using WF10X/20mm eyepieces. The table is an example rather than a specification of every Huaguang microscope model; actual configurations depend on the selected optical system. :contentReference[oaicite:7]{index=7}
Working distance is the space between the objective and the observed sample at the intended focus position. This is particularly important when the operator needs to place a tool, soldering iron, tweezers, probe, or other object near the sample.
A published industrial stereo microscope with WF10X/20mm eyepieces specifies a 100mm working distance and describes applications including electronics, metal parts, watchmaking, and jewelry. :contentReference[oaicite:8]{index=8}
Of course, not every microscope with WF10x/20mm eyepieces has a 100mm working distance. The actual value belongs to the objective and optical design. This is why we do not recommend buyers judge one microscope from another simply because both have “WF10x/20mm” printed in the specification.

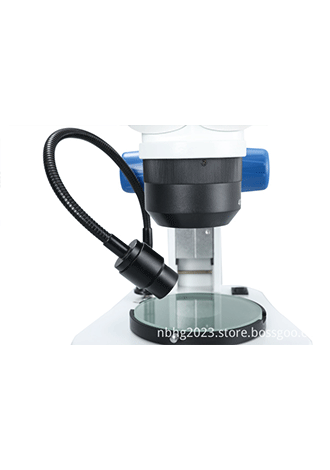

Even excellent optics cannot show a surface properly if the lighting is wrong. A shiny metal part may reflect too much light. A dark object may need more illumination. A transparent or thin sample may benefit from transmitted light.
Some commercial stereo microscope systems use incident and transmitted LED illumination, while other models use ring lights or different illumination arrangements. :contentReference[oaicite:9]{index=9}
For our customers, I therefore look at the actual sample before recommending the final microscope configuration. The same basic optical platform can be used for very different work, but the accessories and illumination should fit the application.
The strength of a stereo microscope is its flexibility. It can sit in a school laboratory one day and on an electronics inspection bench in a factory the next, provided the selected configuration matches the work.
Small electronic components often require close visual inspection. Operators may need to check solder joints, component placement, connector pins, circuit board details, or assembly quality.
A binocular stereo microscope can provide a more natural three-dimensional view while leaving the operator's hands available for inspection or assembly. This is one reason stereo microscope systems with WF10X/20mm eyepieces are commonly marketed for electronics-related inspection. :contentReference[oaicite:10]{index=10}
Jewelry is another natural application. Rings, stones, settings, engraving, polishing marks, small scratches, and connection points often need to be viewed from a three-dimensional perspective.
When inspecting jewelry, I do not want the operator to spend more time adjusting the microscope than examining the product. Smooth focusing, stable mechanics, comfortable binocular viewing, and suitable lighting all make a difference.
Small machined parts can have burrs, grooves, holes, threads, edges, and surface marks that are difficult to judge with the naked eye. A stereo microscope gives the operator a closer look while preserving the basic shape of the component.
It can be useful for incoming inspection, process checks, assembly verification, repair, and final quality control.
Small mechanical or plastic components used in medical equipment may also require visual inspection. The exact microscope configuration should always be selected according to the actual task, sample size, required magnification, and applicable regulatory requirements.
For laboratory environments, the microscope can be used for routine observation, sample sorting, surface inspection, teaching, and other work where a three-dimensional enlarged view is useful.
A stereo microscope is particularly easy to understand in teaching because students can observe a physical object rather than only a prepared flat slide.
Published Fisherbrand educational stereo microscope specifications, for example, include a binocular head, WF10X/20mm eyepieces, 45-degree inclination, and a turret objective system. :contentReference[oaicite:11]{index=11}
| Industry / Work Area | Typical Objects | Why Stereo Observation Helps |
|---|---|---|
| Electronics | PCB assemblies, solder joints, connectors | Shows small details and component relationships |
| Jewelry | Settings, stones, engraving, metal surfaces | Helps inspect three-dimensional details |
| Precision machinery | Machined parts, edges, holes, burrs | Supports detailed surface and dimensional observation |
| Education | Objects, specimens, materials | Simple visual teaching and hands-on observation |
| Laboratories | Samples and small structures | Useful for routine enlarged observation |
| Repair work | Small assemblies and components | Allows closer viewing while working on the sample |
Source note: Application categories are based on the product information supplied for the Huaguang stereo microscope and are consistent with published applications for WF10X/20mm stereo microscopes from Labdex, SISCO, Fisherbrand, and other microscope suppliers. :contentReference[oaicite:12]{index=12}
For a precision optical instrument, the manufacturing process cannot stop when the components are assembled. A microscope may look fine from the outside and still perform poorly if the optical path, focusing mechanism, mechanical parts, or accessories are not checked properly.
At Ningbo Huaguang Precision Instrument Co., Ltd., we combine microscope production with optical component manufacturing and precision injection molding. This gives us practical experience with both optical and mechanical components.
Optical components need to be handled carefully because small contamination, scratches, or assembly errors can affect the final viewing experience. During assembly, we pay attention to optical cleanliness and correct positioning.
The microscope body, focusing structure, viewing head, stage, adjustment parts, and other mechanical components need to work together. We check movement and assembly condition instead of assuming that a correctly installed part will automatically provide the desired result.
We inspect the optical performance and focusing function before shipment. The goal is simple: when the customer receives the microscope, the system should be ready for the agreed application and configuration.
We also check accessories, appearance, assembly quality, and the condition of the complete microscope. For international orders, documentation and the agreed configuration are checked before packing.
Our company has stated that it operates under an ISO9001 quality management system and that its products have CE and RoHS certifications. ISO describes ISO 9001 as a framework for establishing, maintaining, and continually improving a quality management system, with attention to consistent results and customer requirements. :contentReference[oaicite:13]{index=13}
Because certification details can depend on the specific product, market, and applicable documentation, I recommend confirming the exact certificate or conformity documents required for your order before purchase.
Optical instruments need protection during transportation. A microscope that leaves the factory in perfect condition can still encounter vibration, impact, dust, or rough handling during international shipping.
For this reason, our packaging process uses cushioning and dust-proof protection. Each microscope is packed in an individual box and then placed into reinforced export cartons. The exact packaging arrangement can be adjusted according to the microscope configuration, quantity, destination, and shipping method.
We can arrange transportation through air freight, sea freight, express delivery, or another suitable logistics method according to the order requirements.
When buying an industrial or laboratory microscope from overseas, the product itself is only part of the decision. Communication, customization, inspection, documents, packaging, and after-sales support can have just as much influence on the actual purchasing experience.
Our company is located in Haishu District, Ningbo, Zhejiang, an area with convenient transportation and a strong manufacturing environment. We focus on educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.
We have supplied products to more than 20 countries and regions. This international experience is useful because overseas buyers often have different expectations regarding configuration, documentation, packaging, voltage, accessories, and transportation.
If you tell me only “I need a stereo microscope,” I can give you a general product recommendation. But if you tell me what you actually inspect, I can make the discussion much more useful.
For example, I would want to know whether you are inspecting jewelry, electronics, machine parts, educational samples, medical equipment, or something else. I would also want to know the approximate sample size, required magnification, working distance, illumination preference, and whether operators need to work directly under the objective.
These details help avoid a common purchasing mistake: buying a microscope with specifications that look impressive but do not match the actual job.
The production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard configurations can normally be arranged more quickly, while customized orders may need additional production time.
Before production, we can confirm the required configuration with the customer. This may include optical components, stand configuration, illumination, accessories, packaging, and documentation.
Before delivery, we check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality. The final delivery includes the agreed microscope configuration, accessories, user documents, and applicable inspection or certification documents.
Payment follows the order agreement, commonly using a deposit and balance before shipment. For international delivery, the logistics method can be selected according to destination, urgency, quantity, and budget.
WF10x/20mm generally describes the eyepiece. The “10x” indicates the eyepiece magnification, while “20mm” is the field number. It should not be confused with the total microscope magnification. Total magnification depends on the objective or zoom optics used with the eyepiece.
It can serve both laboratory and industrial inspection purposes when the configuration is selected correctly. Stereo microscopes are used in laboratories, education, electronics, jewelry, metallurgy, repair, and quality inspection. The final configuration should be chosen according to the sample and working method.
Yes. Stereo microscopes are commonly used for electronics assembly and inspection. The three-dimensional view can make it easier to inspect solder joints, components, connectors, and other small structures. A suitable working distance and illumination are important if the operator needs to work directly under the microscope.
Yes. Jewelry is a natural application for stereo microscopy because many jewelry details have three-dimensional shapes. Settings, engraving, stone mounting, scratches, polishing marks, and small metal structures can be inspected under magnification.
No. WF10x/20mm usually identifies the eyepiece. For example, if a 10x eyepiece is paired with a 2x objective, the nominal combined magnification is 20x. If it is paired with a 4x objective, the nominal combined magnification is 40x. Actual microscope configurations vary by model.
I recommend checking working distance, field of view, optical clarity, focusing movement, binocular adjustment, illumination, stand stability, sample size, accessories, and after-sales support. For production inspection, these factors can be just as important as the magnification number.
There is no single production time for every microscope. The cycle depends on the model, optical configuration, accessories, order quantity, and customization requirements. Standard models can normally be arranged faster, while customized configurations may require additional production time. We confirm the actual schedule with the customer before production.
We check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality. We also check the agreed configuration and delivery documents before packing.
We use cushioning and dust-proof protection around the microscope, pack each unit in an individual box, and then place it into reinforced export cartons. The final packaging can be adjusted according to the product configuration, quantity, and transportation requirements.
We can discuss customized requirements based on the customer's application. The most useful information includes the object being inspected, required magnification, working distance, viewing method, illumination requirements, accessories, quantity, and destination market.
When I choose a microscope for a real production or laboratory environment, I try not to get distracted by a single specification. The best equipment is the equipment that matches the actual work.
The WF10x/20mm binocular stereo microscope laboratory microscope is built around a practical combination of binocular observation, stereo viewing, wide-field eyepiece configuration, stable focusing, and flexible application. It can be used for electronics assembly, jewelry inspection, precision machinery, laboratories, education, repair work, and quality control, depending on the final optical and mechanical configuration.
The WF10x/20mm specification is also worth understanding correctly. It describes the eyepiece rather than the complete microscope magnification. Published products show that WF10X/20mm eyepieces can be combined with different objectives to create different magnification levels and working conditions. :contentReference[oaicite:14]{index=14}
At Ningbo Huaguang Precision Instrument Co., Ltd., our approach is straightforward: confirm the application, select the appropriate optical and mechanical configuration, manufacture and assemble the microscope carefully, inspect it before shipment, and protect it properly during international transportation.
Our company continues to work around the idea that there is always room to improve. As our credo says, “Nothing is perfect only better and better.” For a precision instrument manufacturer, I think that is a useful way to work. A microscope may look like a simple combination of lenses, a body, and a focusing mechanism, but reliable daily performance comes from many small details being handled correctly.
If you are sourcing a WF10x/20mm binocular stereo microscope laboratory microscope for education, laboratory observation, electronics inspection, jewelry work, precision machinery, or another application, we can discuss the actual sample and working requirements first, then match the microscope configuration to the job rather than simply choosing specifications from a catalog.
Labdex, published Stereo Microscope LX707SMS specifications, including WF10X/20mm eyepiece, binocular head, magnification, working distance, illumination, and laboratory applications. :contentReference[oaicite:15]{index=15}
SISCO, published Binocular Stereo Microscope for Industrial Inspection specifications, including WF10X/20mm eyepieces, objective combinations, working distance, binocular head, and industrial applications. :contentReference[oaicite:16]{index=16}
Fisherbrand microscope documentation, including educational stereo microscope specifications with binocular head and WF10X/20mm eyepieces. :contentReference[oaicite:17]{index=17}
ISO, ISO 9001:2026 information covering quality management systems, customer requirements, process control, performance evaluation, and continual improvement. :contentReference[oaicite:18]{index=18}
