Stereo Digital Microscope Trinocular Stereo Microscope for Precision Inspection and Digital Imaging
When I talk with customers about a Stereo Digital Microscope Trinocular Stereo Microscope, I usually start with one simple question: what are you actually looking at under the microscope?
It sounds obvious, but it matters. A Microscope Used to inspect solder joints is not working in exactly the same way as one used for jewelry, small mechanical parts, laboratory samples, or classroom teaching. The optical system, viewing method, lighting, working distance, camera connection, and stand all need to fit the job.
Our stereo microscope is designed around this practical idea. It provides clear three-dimensional observation, stable focusing, and comfortable inspection of Small Parts and surface details. With a trinocular configuration, the user can observe through the binocular eyepieces while also using a camera through the third optical port when the selected configuration includes digital imaging.
At Ningbo Huaguang Precision Instrument Co., Ltd., we manufacture educational microscopes, Industrial Inspection microscopes, professional Jewelry Inspection microscopes, optical components, and precision injection molded products. Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan.
For me, the useful part of a digital trinocular microscope is not simply adding a camera. The real value is being able to combine direct three-dimensional observation with digital image capture, documentation, teaching, inspection records, or image sharing when the application requires it.
A Stereo Digital Microscope trinocular stereo microscope combines two useful ideas in one instrument: stereo observation and a third optical path for imaging.
The stereo part gives the operator a three-dimensional view of the sample. Instead of seeing only a flat enlarged picture, the user can better understand edges, holes, raised surfaces, grooves, assembly relationships, and other physical features.

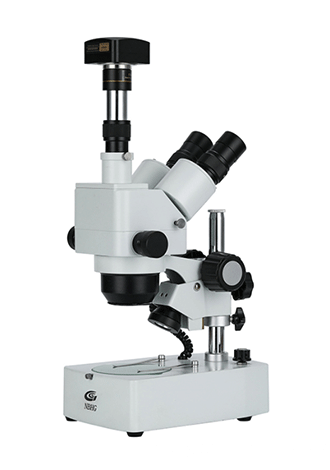

The trinocular part adds a third viewing path. The two main paths are used by the operator's eyes, while the third path can be connected to a microscope camera or digital imaging system, depending on the microscope configuration.
This arrangement is especially useful when I need to inspect a component while another person needs to see the same image on a computer screen. It is also useful when I need to save images for quality records, training, product comparison, research notes, or customer communication.
There is an important point here: “trinocular” does not automatically mean that every microscope includes the same camera, software, monitor, or imaging resolution. The digital part depends on the selected camera and system configuration. When purchasing, I recommend checking the complete optical and imaging package rather than looking only at the word “digital.”
The same principle applies to magnification. A microscope's final magnification is determined by its optical combination, not simply by the fact that it has a digital camera. Objective magnification, eyepiece magnification, zoom range, and camera characteristics all affect what the user finally sees.
For this reason, we discuss the actual sample and inspection task before confirming the final configuration.
I see the trinocular design as a bridge between traditional microscope inspection and modern digital documentation.
With binocular viewing, the operator gets direct visual feedback from the sample. This is valuable for judging shape and depth. With the camera port, the image can also be transferred into a digital workflow when the appropriate camera and software are installed.
That makes the microscope useful not only as an observation instrument but also as part of a wider inspection process.
The working principle is easier to understand than the name makes it sound.
Light reaches the sample and is reflected or transmitted toward the microscope's optical system. The objective collects the light and forms the magnified image. The stereo optical system provides two slightly different viewing paths, allowing the operator to perceive depth.
At the same time, the trinocular system provides a separate optical path for the camera. Depending on the microscope design, the camera can receive an image from the same optical system used for observation.
This means I can look through the eyepieces while a digital camera records the image. That is very useful during inspection because I do not have to choose between looking at the sample directly and creating a digital record.
Imagine that I am checking a small electronic circuit board.
First, I place the board securely on the working surface. I adjust the microscope position and illumination, then bring the component into focus. Through the binocular head, I can inspect the solder joint and surrounding components with a three-dimensional view.
If I see something that needs to be recorded, the connected camera can capture the image. I can then use that image for a quality record, internal discussion, training material, or communication with a customer.
The same workflow can be used for jewelry inspection, mechanical components, small molded parts, laboratory samples, repair work, and educational demonstrations.
It is tempting to think that a high-resolution camera makes the eyepieces unnecessary. In practical work, I would not make that assumption.
A computer screen provides a convenient large image, but direct binocular observation can still give the operator a more natural sense of depth and immediate control during hands-on inspection.
When the operator needs to manipulate a small part, compare surface structures, or judge the shape of an edge, direct stereo observation can be very useful.
Digital imaging then adds another layer: the ability to share and preserve what was observed.
The first feature I look for is a genuinely useful stereo image. A stereo microscope should make it easier to understand the shape and position of small details, rather than simply making the object larger.
This is particularly helpful for uneven samples. A machined part, jewelry setting, solder joint, connector, plastic component, or mechanical assembly can contain many small changes in height that are difficult to judge with the naked eye.
The third optical port is one of the most useful features when inspection and documentation need to happen together.
With a suitable camera installed, the microscope can support digital imaging without removing the operator from the direct viewing process. The exact camera interface, sensor, resolution, software compatibility, and image output depend on the selected imaging system.
A microscope used for inspection needs controlled focusing. When I adjust the focus, I want the image to become sharp without excessive mechanical movement.
This is particularly important when inspecting tiny features. A small change in focus can make a fine scratch, solder point, edge, or surface defect appear very different.
For routine work, operator comfort matters more than many buyers expect.
The user should be able to adjust the binocular head to a comfortable eye position. Diopter adjustment can also help compensate for differences between the operator's eyes.
When several people share the microscope, easy adjustment becomes even more important.
A digital microscope is most useful when the imaging system fits the actual task. A simple documentation camera may be enough for inspection records. A more capable camera may be appropriate when the user needs detailed images, measurement functions, video recording, or display-based teaching.
I therefore recommend treating the camera as part of the complete system rather than an isolated accessory.
Lighting can completely change the appearance of a sample.
A shiny metal surface may reflect too much light. A dark component may need stronger illumination. A textured surface may need a different light angle to make small features easier to see.
For this reason, the illumination arrangement should match the sample instead of being selected simply because it looks convenient in a catalog photograph.
| System Element | Practical Function | Why I Consider It Important |
|---|---|---|
| Binocular optical path | Direct observation through two viewing paths | Supports natural stereo viewing |
| Trinocular port | Provides a separate imaging path | Allows camera-based documentation when configured |
| Objective system | Provides primary optical magnification | Determines the detail level and working conditions |
| Focusing mechanism | Moves the optical system to obtain a sharp image | Important for repeatable inspection |
| Illumination | Lights the sample | Helps reveal surface and component details |
| Digital camera | Captures the microscope image | Useful for records, sharing, teaching, and analysis |
Source note: The table describes the practical roles of common stereo microscope components. The exact configuration, camera interface, optical path, and illumination depend on the selected microscope model and accessories.
When customers ask me whether they should buy a standard Binocular Stereo Microscope or a trinocular digital model, I usually ask what happens after the inspection.
If the answer is “nothing, the operator just looks at the sample,” a Binocular Microscope may be sufficient.
If the answer is “we need to save images, show the image to another person, teach students, create inspection records, or compare samples on a computer,” the trinocular configuration becomes much more interesting.
One of the biggest advantages is the ability to create a visual record.
For example, suppose a quality inspector finds a surface mark on a precision component. Instead of writing only “surface defect found,” the inspector can capture an image when the system is configured for digital imaging.
The image can then become part of a quality report or internal discussion. This does not replace professional inspection standards, but it can make communication much clearer.
Digital imaging is also useful in education.
Instead of having one student look through the eyepieces while everyone else waits, the microscope image can be displayed on a suitable screen when the camera and display system are connected.
The teacher can point out a structure while students follow the same image. This can make practical microscope training much easier.
In manufacturing, problems are often discussed by people who are not standing at the same workbench.
A digital microscope can help by making the inspected detail easier to share. A supplier can capture a component image, a quality engineer can review it, and a customer can discuss the same visible feature.
Again, the exact workflow depends on the selected camera, computer, software, and network environment, but the microscope provides the optical foundation.
This is where I see the real value of a trinocular stereo microscope.
The operator still uses direct observation and experience to judge the physical sample. The digital camera adds a convenient way to preserve what was seen.
One does not need to replace the other.
| Inspection Method | Direct Stereo View | Digital Image | Typical Advantage |
|---|---|---|---|
| Visual inspection only | Yes | No | Simple and direct operation |
| Binocular stereo inspection | Yes | No | Good for three-dimensional observation |
| Trinocular inspection | Yes | Optional camera | Observation plus imaging capability |
| Digital documentation | Yes, depending on configuration | Yes | Image records and sharing |
| Teaching demonstration | Yes | Yes | Allows multiple viewers to follow the image |
Source note: This comparison describes functional differences between common observation arrangements. Digital imaging capabilities depend on the camera and software selected for the microscope.
The application range is broad because the microscope is not tied to only one type of sample.
Electronics is one of the first industries I think of.
Small circuit boards, connectors, solder joints, wires, component leads, and other parts can benefit from magnified stereo observation. The operator can inspect the physical structure while a camera provides digital images when required.
For production lines, repair benches, laboratories, and quality departments, this combination can be useful because inspection often involves both visual judgment and documentation.
Jewelry has many small details that are difficult to inspect comfortably with the naked eye.
A stereo microscope can help inspect stone settings, metal surfaces, engraving, small scratches, polishing marks, and assembly points. The three-dimensional view is particularly useful when the object has curved or raised structures.
With digital imaging, selected details can also be recorded for product documentation or communication.
Small mechanical components may contain burrs, grooves, holes, edges, threads, and surface marks. The microscope allows the operator to inspect these areas more closely without losing the overall shape of the part.
This can be useful during incoming inspection, production checks, assembly, repair, and final quality control.
Small components used in medical equipment may require careful visual inspection. The microscope configuration should always be selected according to the specific component, inspection procedure, and applicable industry requirements.
For non-clinical laboratory or manufacturing inspection, a trinocular stereo microscope can provide a useful combination of direct viewing and digital documentation.
A digital trinocular microscope can be particularly useful in teaching environments because the instructor can display the microscope image to a larger group.
Students can learn how to adjust focus, identify structures, compare samples, and understand three-dimensional observation while the instructor demonstrates the process.
Repair technicians often work with small parts that are difficult to see clearly. A stereo microscope can provide a close working view while preserving enough space around the sample for practical manipulation.
The exact working distance and stand design should be selected according to the tools used during repair.
| Application | Sample Examples | Useful Microscope Function |
|---|---|---|
| Electronics | PCB, solder joints, connectors | Stereo viewing and digital recording |
| Jewelry | Settings, stones, engraving | Three-dimensional detail inspection |
| Precision machinery | Small metal parts, edges, holes | Surface and assembly inspection |
| Education | Specimens and small objects | Shared digital observation |
| Laboratory | Samples and small structures | Detailed visual observation |
| Repair | Small assemblies and components | Close inspection during hands-on work |
Source note: The application categories above are based on the product information supplied for the Huaguang stereo microscope and the common use of stereo microscopes in inspection, education, laboratory, electronics, jewelry, and repair environments.
As a manufacturer, I know that the finished microscope is only as good as the small steps behind it.
Customers usually see the final product: the microscope body, eyepieces, stand, focusing knob, illumination, and perhaps the camera. What they do not see is the work involved in preparing and checking the individual components.
At Ningbo Huaguang Precision Instrument Co., Ltd., our business covers microscope production, optical components, and precision injection molding. This combination gives us experience with both optical and mechanical product requirements.
Optical parts need careful handling. Dust, contamination, scratches, or incorrect assembly can affect the image.
During production, optical components are handled and assembled with attention to cleanliness and positioning. The goal is not simply to make the microscope look complete, but to make sure the optical system works as intended.
The focusing mechanism, microscope body, viewing head, stand, stage, and adjustment components need to work together smoothly.
A microscope used in a factory may be adjusted hundreds of times. If the mechanical movement is inconsistent, the problem becomes obvious very quickly.
Before delivery, we check optical performance and focusing. We also inspect mechanical operation, accessories, appearance, and overall assembly quality.
This is an important step because the customer should receive the agreed configuration in working condition rather than having to discover basic assembly problems after delivery.
For a trinocular microscope supplied with a camera system, the imaging configuration needs to match the optical system. Camera connection, adapter selection, image output, and software compatibility should be confirmed according to the selected components.
I recommend that customers tell us in advance whether they need still images, video, screen display, measurement, teaching, or simple documentation. That information helps us discuss the appropriate imaging configuration.
Ningbo Huaguang Precision Instrument Co., Ltd. has an ISO9001 quality management system certification. ISO's current information explains that ISO 9001 provides a framework for establishing, maintaining, and continually improving a quality management system, with requirements covering areas such as operation, performance evaluation, and improvement. :contentReference[oaicite:0]{index=0}
It is worth noting that ISO 9001 certification is about the organization's quality management system; it should not be interpreted as a guarantee that every individual microscope has identical performance or that every product configuration carries the same certification. Product-specific certification documents should always be checked for the actual order.
After inspection, packaging becomes the next important step.
Optical equipment needs protection from vibration, impact, dust, and movement during transportation. We protect each microscope with cushioning and dust-proof materials, pack it in an individual box, and then place it into reinforced export cartons.
For larger orders or special configurations, the packaging arrangement can be discussed according to quantity, destination, and transportation method.
One of the easiest ways to make a microscope purchase complicated is to begin with a specification number instead of the sample.
For example, a customer may tell me, “I need a digital stereo microscope with high magnification.” That sounds specific, but it still leaves many questions unanswered.
What is the sample size? Is it shiny metal, black plastic, electronic components, jewelry, or a biological specimen? Does the operator need to work under the objective? Does the customer need still images or video? Will several people view the screen? How long will the microscope be used each day?
These details change the configuration.
Our goal is not to sell a microscope based only on a product name. We prefer to understand the customer's working conditions first.
For a Stereo Digital Microscope Trinocular Stereo Microscope, the discussion may include the optical system, objective, eyepiece, trinocular head, camera, adapter, illumination, stand, stage, accessories, and packaging.
This approach is especially useful for overseas buyers because replacing an unsuitable microscope after international delivery is much more troublesome than confirming the requirements before production.
Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, Japan, and other markets.
We understand that an export order involves more than manufacturing. Customers may need specific documents, packaging arrangements, delivery methods, and communication during the production process.
The production cycle depends on the microscope model, optical configuration, accessories, quantity, and customization requirements. Standard models can normally be arranged faster, while customized orders may require additional production time.
Before shipment, we check the optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly condition.
The delivery package includes the agreed microscope configuration, accessories, user documents, and applicable inspection or certification documents.
Payment follows the order agreement, commonly with a deposit and balance before shipment. Transportation can be arranged by air freight, sea freight, express delivery, or another suitable logistics method according to the destination and delivery requirements.
A trinocular stereo microscope has two optical viewing paths for binocular observation plus a third optical path intended for imaging. When a compatible camera is installed, the third path can be used to capture microscope images while the operator continues to observe through the eyepieces.
Not necessarily. “Digital microscope” describes a system that uses digital imaging, while “trinocular microscope” describes the optical viewing configuration. A trinocular microscope can be equipped with a digital camera, but the camera, adapter, software, and display system should be confirmed separately.
The main practical advantage is the combination of direct stereo observation and digital imaging. The operator can inspect the sample through the binocular head while using a camera for image capture, teaching, documentation, or communication when the selected configuration supports these functions.
Yes. It is suitable for many electronics inspection tasks, including viewing circuit boards, solder joints, connectors, component placement, and other small structures. The exact configuration should be selected according to the sample size, required magnification, working distance, and lighting conditions.
Yes. Stereo microscopy is well suited to jewelry because many jewelry details are three-dimensional. Settings, stone mounting, engraving, surface marks, and polishing details can be examined more closely. Digital imaging can also be useful when selected details need to be recorded.
Yes, when a compatible digital camera and imaging system are included. The exact image resolution, file format, software functions, measurement tools, and video capabilities depend on the selected camera and software.
Yes, if the camera is connected to a suitable computer or display system. This can be useful for classroom teaching, group inspection, demonstrations, and technical discussions.
Yes. The stereo microscope can be used for laboratory observation, sample inspection, education, sorting, repair, and other work involving small three-dimensional objects. The final configuration should match the actual laboratory task.
The production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard configurations can usually be arranged more quickly. Customized orders may require additional time, and the actual schedule is confirmed according to the order.
We use cushioning and dust-proof protection, individual boxes, and reinforced export cartons. The packaging method can be adjusted according to the microscope configuration, quantity, destination, and transportation requirements.
Our company has an ISO9001 quality management system certification, and our products have been certified to CE and RoHS according to the company information provided for this product range. Because certification can apply to specific products or configurations, customers should confirm the applicable certificates and documents for the exact order.
We can discuss customized requirements based on the inspection application. Useful information includes the sample type, required magnification, working distance, optical configuration, camera requirements, illumination, accessories, order quantity, and destination market.
For me, the most useful thing about a Stereo Digital Microscope Trinocular Stereo Microscope is the balance between direct observation and digital work.
The stereo optical system helps the operator understand small three-dimensional details. The binocular head provides direct viewing through two optical paths. The trinocular port creates a separate path for a suitable camera, making digital imaging possible without giving up direct observation.
That combination makes the microscope suitable for many practical situations: electronics assembly, jewelry inspection, precision machinery, laboratory work, education, repair, medical equipment components, and quality control.
At Ningbo Huaguang Precision Instrument Co., Ltd., we do not treat the microscope as a collection of isolated specifications. We look at the sample, the working distance, the required observation method, the imaging needs, the accessories, and the delivery conditions together.
Our products are exported to more than 20 countries and regions, and our manufacturing work covers educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding. We also inspect optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly before shipment.
Our company follows the principle that “Nothing is perfect only better and better.” For precision instruments, I believe that mindset matters. A good microscope is not created by one impressive specification. It comes from many small details working together: optics, mechanics, lighting, focusing, assembly, inspection, packaging, and after-sales support.
If you are looking for a stereo digital microscope with trinocular viewing for professional inspection, education, laboratory observation, electronics, jewelry, or precision manufacturing, we can discuss your actual application and help match the optical and digital configuration to the work.
