When I talk about a stereo microscope with customers, I usually start with one simple question: what do you actually need to see? The answer is often not “the highest possible magnification.” In a classroom, electronics workshop, jewelry bench, repair station, or inspection room, people need a microscope that makes small objects easier to understand and easier to work with.

That is exactly how I look at our WF10x/20mm Stereo-microscope Binocular Stereo Microscope. It is designed for clear three-dimensional observation, stable focusing, and comfortable viewing of Small Parts and surface details. The binocular structure allows observation through both eyes, while the stereo optical arrangement helps the user understand the shape and depth of an object.

At Ningbo Huaguang Precision Instrument Co., Ltd., we manufacture educational microscopes, Industrial Inspection microscopes, professional Jewelry Inspection microscopes, optical components, and precision injection molded parts. Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan.

In this product page, I want to explain the microscope from a manufacturer's point of view rather than simply repeat a specification list. I will cover what WF10x/20mm means, how binocular stereo observation works, where this microscope can be used, what we check before shipment, and what buyers should consider before ordering.

1. What Is the WF10x/20mm Stereo-microscope Binocular Stereo Microscope?

A stereo microscope is made for observing objects in a way that feels more natural than simply looking at a flat enlarged image. It uses separate optical paths for the two eyes, allowing the user to gain a sense of depth and shape.

This is especially useful when I need to inspect an object with raised edges, grooves, holes, curved surfaces, solder joints, tiny mechanical structures, or other physical details. Instead of seeing only a magnified picture, I can get a better idea of how the different parts of the object sit in relation to each other.

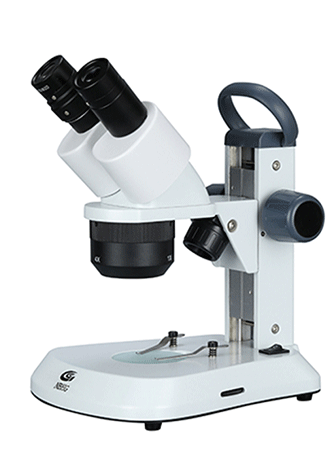

The WF10x/20mm Binocular Stereo Microscope is built around a binocular viewing system and a WF10x/20mm eyepiece configuration. The “WF” generally refers to wide field, while “10x” describes the eyepiece magnification. The 20mm value refers to the eyepiece field number.

This is an important point that I always recommend buyers understand before comparing microscopes. WF10x/20mm does not mean that the complete microscope automatically provides 10x total magnification. Total magnification depends on the complete optical path, including the objective and any zoom or intermediate magnification system.

Professional microscope specifications demonstrate the same principle. For example, Evident lists total magnification as a result of combining the objective and eyepiece rather than treating the eyepiece magnification as the total microscope magnification. :contentReference[oaicite:0]{index=0}

The 20mm field number is also not the same thing as the actual diameter of the specimen you will see. Field number is an eyepiece specification used to describe the image area, while the actual field of view depends on the optical system. Evident explains the relationship between field number and field of view in its microscope terminology guide. :contentReference[oaicite:1]{index=1}

Source: Microscope optical terminology and field-of-view principles are referenced from Evident Scientific's microscopy resources and product specifications. :contentReference[oaicite:2]{index=2}

2. How Binocular Stereo Observation Works

The working principle of a stereo microscope is actually quite easy to understand. Light reaches the object being inspected, the optical system collects the reflected or transmitted light, and the microscope sends enlarged images toward the user's eyes through separate viewing paths.

Because the two eyes receive slightly different views, the brain can combine them and create a sense of depth. That is why a stereo microscope is particularly useful for objects with real physical shape.

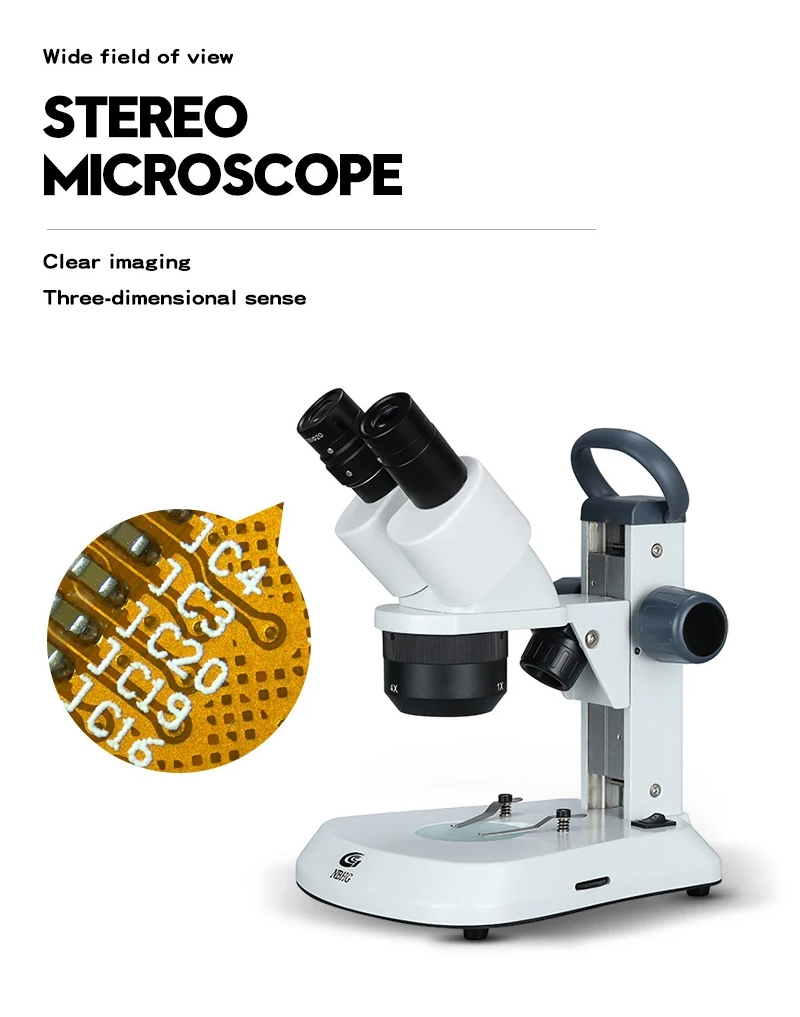

I often use a small electronic component as an easy example. If I look at it with my eyes alone, I can see the component, but tiny solder joints or surface details may be difficult to judge. Under a stereo microscope, those details become larger. More importantly, I can still understand which parts are higher, lower, closer, or farther away.

This makes stereo microscopy different from simply increasing magnification. Higher magnification is useful only when the rest of the optical system and the application can support it. If the image becomes difficult to control, the working distance becomes too short, or the field becomes too narrow, the extra magnification may not help the operator.

For this reason, I prefer to look at a microscope as a complete working system. The eyepiece is only one part. The objective, optical head, focusing mechanism, stand, illumination, mechanical alignment, and accessories all affect the actual experience.

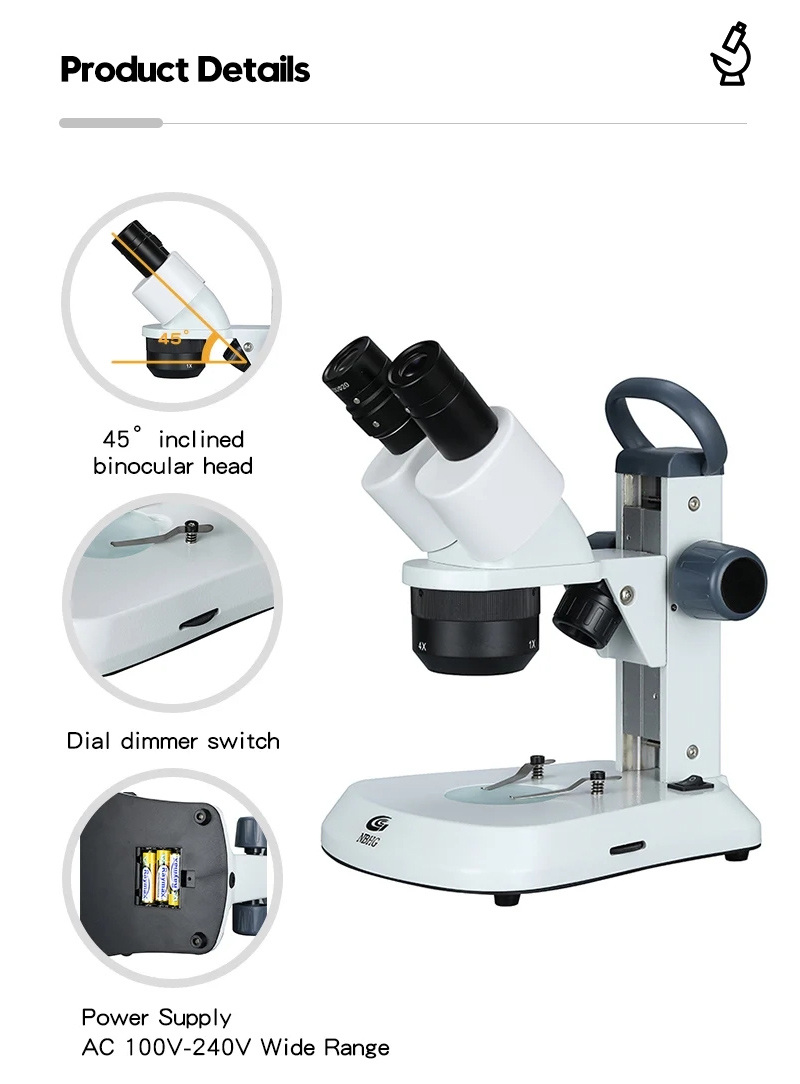

Binocular Viewing for Longer Observation

When a user works through a Binocular Microscope, both eyes can be involved in observation. This is useful in education, laboratory training, and repeated inspection work because the operator is not relying on only one viewing path.

The exact comfort level still depends on correct adjustment and individual users. That is why mechanical alignment and proper eyepiece positioning matter during assembly.

Stable Focusing

Focusing is one of the first things an operator notices. If the focusing movement is too loose, too tight, or uneven, even good optics become frustrating to use.

We therefore pay attention to focusing and mechanical operation during final inspection. The goal is straightforward: the user should be able to make small adjustments without unnecessary movement or instability.

Three-Dimensional Detail

The stereo configuration is particularly helpful when the object has depth. This includes small mechanical components, electronic assemblies, jewelry, surface features, repair areas, and educational specimens.

In practical work, being able to understand shape can sometimes be more useful than simply seeing a highly enlarged image.

3. Main Features I Consider Important in Daily Use

When we build a microscope, I do not look only at the specification sheet. I also think about what happens after the microscope leaves the factory. It may be used by a student who has never touched a microscope before, a teacher demonstrating an object to a class, or a technician who spends several hours inspecting small components.

Clear Binocular Observation

The binocular configuration is suitable for users who need two-eye observation. This is particularly useful in educational environments where students need to learn practical observation skills rather than simply watch a demonstration.

Practical WF10x/20mm Eyepiece Configuration

The WF10x/20mm configuration gives the microscope a useful general observation setup. I would not treat the eyepiece specification as a complete description of microscope performance, however. The final result depends on how the eyepiece works together with the objective and other optical components.

Comfortable Inspection

For a Microscope Used every day, comfort is not a luxury. Students need to remain focused during a lesson, while technicians need to work without constantly fighting the equipment.

A stable viewing head, predictable focusing, suitable working distance, and appropriate lighting can make a surprisingly large difference.

Stable Mechanical Structure

A microscope should stay where the operator expects it to stay. When a user is trying to inspect a tiny part, even unwanted movement can make the task harder.

That is why we inspect the mechanical operation and overall assembly before shipment rather than concentrating only on appearance.

Flexible Application

The same stereo microscope principle can be useful in several fields. With the appropriate accessories and configuration, it can support education, electronics inspection, jewelry work, precision machinery, repair, laboratories, and quality control.

Source: Application descriptions are based on the general functions of stereo microscopy and the supplied product configuration. Specific performance depends on the final microscope model and accessories.

4. Where Can I Use This Stereo Microscope?

One of the reasons I like the stereo microscope format is its versatility. The microscope does not belong to only one industry. What changes from one application to another is usually the sample, working distance, lighting, accessories, and required optical configuration.

Education and Student Training

The first application is naturally education. A WF10x/20mm student binocular stereo microscope can be used for classroom demonstrations, laboratory exercises, specimen observation, and basic practical training.

For schools, the equipment needs to be easy to understand. A student should not spend the entire lesson trying to figure out how the Microscope Works. Teachers also need equipment that can be adjusted quickly between different students and samples.

Electronics Assembly

Electronics work is another natural application. Small components, solder joints, connector areas, circuit details, and assembly points can be difficult to inspect with the naked eye.

A binocular stereo microscope allows the operator to observe the work area while keeping the object physically accessible. This is useful for inspection and certain hands-on tasks.

Jewelry Inspection

Jewelry contains many small details: settings, edges, surfaces, polishing marks, stone positions, and tiny structural features. Stereo observation can make these details easier to examine.

For specialized professional jewelry work, I recommend confirming the required magnification, working distance, lighting, and accessories before selecting the final configuration.

Precision Machinery

Machined components may contain small holes, grooves, threads, edges, surface marks, and assembly details. A stereo microscope can be used for visual inspection during production or after machining.

It is important to remember that visual inspection and dimensional measurement are not the same thing. If a customer needs precise dimensional data, dedicated measurement equipment may also be required.

Repair and Maintenance

Repair work often involves small working areas. A technician may need to inspect a component while manipulating it with tools. This is one of the situations where stereo microscopy becomes especially practical.

Laboratory Work

Laboratories can use stereo microscopes for various non-diagnostic observation tasks, depending on the specimen and configuration. The three-dimensional view can be useful for samples that have visible surface structure or physical depth.

Quality Control

Quality control teams can use a stereo microscope for visual checks of parts, surfaces, assembly conditions, and workmanship. It can become one part of a broader inspection process rather than replacing all other measuring instruments.

Source: Professional stereo microscope product documentation from Evident shows binocular observation configurations and a wide range of applications and optical combinations. :contentReference[oaicite:3]{index=3}

5. How We Manufacture and Inspect the Microscope

From the outside, a microscope may look like a fairly simple combination of a head, stand, eyepieces, and focusing mechanism. In manufacturing, however, the small details matter. Optical components have to work together, mechanical parts have to fit correctly, and the final product needs to survive transportation.

Our production process starts by confirming the customer's actual requirements. We review the microscope model, optical configuration, accessories, quantity, customization requirements, and delivery destination.

This step sounds basic, but it prevents many problems later. A standard microscope and a customized microscope should not automatically be given the same production schedule. Different optical configurations and accessory combinations can change assembly and inspection requirements.

Optical Component Assembly

We assemble the optical components according to the agreed microscope configuration. Clean handling is important because dust, fingerprints, or contamination can affect the viewing experience.

The eyepiece and objective should be treated as parts of a complete optical system. I do not recommend judging a microscope by one optical number alone.

Mechanical Assembly

The microscope head, focusing mechanism, stand, and other mechanical parts are assembled and adjusted. We pay attention to movement and overall stability.

A focusing knob should not feel unpredictable. The microscope should also remain stable during normal observation and adjustment.

Optical Performance Check

Before delivery, we check the optical performance of the microscope according to the agreed configuration. We also check focusing, mechanical operation, accessories, appearance, and overall assembly quality.

For customized products, the inspection points can be matched to the customer's agreed requirements. If applicable inspection or certification documents are required, they are included according to the order arrangement.

Export Packaging

After inspection, the microscope needs protection for transportation. This is particularly important for international shipments because the product may experience multiple handling stages before reaching the customer.

We use cushioning and dust-proof materials, pack each microscope in an individual box, and then place it in reinforced export cartons. The exact packing arrangement depends on the microscope model, order quantity, and transportation requirements.

We can arrange transportation through air freight, sea freight, express delivery, or another suitable logistics method depending on the destination and delivery schedule.

6. Quality Management and Certifications

Ningbo Huaguang Precision Instrument Co., Ltd. has been certified to ISO 9001, and our products have been certified to CE and RoHS according to the applicable product requirements supplied by the company.

For buyers, it is useful to understand what these terms actually mean instead of treating them as simple marketing labels.

ISO 9001 is a quality management system standard. The current edition is ISO 9001:2026, published by the International Organization for Standardization in September 2026. ISO explains that the standard provides a framework for establishing, maintaining, and continually improving a quality management system, with attention to customer requirements, performance evaluation, and continual improvement. :contentReference[oaicite:4]{index=4}

This does not mean ISO 9001 is a product performance certificate. It is better understood as a framework for managing quality-related processes. Buyers should still review the actual microscope specifications, inspection requirements, and applicable product documents for their project.

CE is related to conformity requirements for products placed on the applicable European market. RoHS concerns restrictions on certain hazardous substances in applicable electrical and electronic equipment. The exact obligations depend on the product and market scope.

Source: ISO 9001:2026 official information from the International Organization for Standardization. :contentReference[oaicite:5]{index=5}

My advice to buyers is simple: when a project requires compliance documents, ask for the documents relevant to the exact model and market. A general statement on a website should not replace proper technical and conformity documentation.

7. Why Work With Ningbo Huaguang Precision Instrument Co., Ltd.?

Choosing a microscope manufacturer is about more than comparing two product names. The same-looking microscope can have different configurations, accessories, production standards, inspection procedures, and after-sales support.

At Ningbo Huaguang Precision Instrument Co., Ltd., our main business covers educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.

This range gives us experience with different types of microscope users. Educational customers may care about ease of operation and practical classroom use. Industrial customers may care more about inspection stability and configuration. Jewelry customers may focus heavily on optical detail and working conditions.

Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. International supply naturally requires more attention to packaging, documentation, transportation, communication, and after-sales service.

We also understand that customers do not all purchase in the same way. A school may need several microscopes for a laboratory. A distributor may need repeated supply. An industrial customer may need a specific optical configuration. Another customer may need a sample before placing a larger order.

That is why we prefer to discuss the actual application first. What are you observing? What is the approximate size of the object? How much working space is available? Do you need lighting or other accessories? Will the microscope be used by beginners or experienced operators? These questions often tell us more than simply asking for “a high magnification microscope.”

Our company credo is “Nothing is perfect only better and better.” For me, that means we should keep looking at the small details that affect customer experience. Product improvement does not always require a dramatic redesign. Sometimes it means improving assembly consistency, checking a mechanical movement more carefully, improving packing protection, or communicating product details more clearly.

8. Frequently Asked Questions

What does WF10x/20mm mean?

WF10x/20mm generally describes the eyepiece configuration. WF10x indicates 10× eyepiece magnification, while 20mm refers to the field number. It does not automatically mean that the complete microscope has 10× total magnification.

What is the difference between a binocular microscope and a stereo microscope?

“Binocular” describes the two-eye viewing arrangement, while “stereo” describes an optical design that provides a three-dimensional observation effect. A microscope can therefore be described using both terms when it has binocular viewing and stereo optical paths.

Is the WF10x/20mm Stereo-microscope suitable for students?

Yes. The binocular stereo configuration is suitable for educational observation, laboratory training, classroom demonstrations, and practical student work. The final suitability depends on the sample type and the required optical configuration.

Can this binocular stereo microscope be used for electronics inspection?

Yes. It can be used for visual inspection of small electronic components, solder joints, connectors, and assembly details. For a specific electronics application, I recommend confirming the required working distance, lighting, magnification range, and accessories before ordering.

Can it be used for jewelry inspection?

Yes, stereo microscopes are useful for observing jewelry surfaces, settings, edges, and other small physical details. Professional jewelry applications may require a specialized configuration, so the final optical setup should be selected according to the actual work.

Is 10x the total magnification?

No. The 10x in WF10x/20mm normally refers to the eyepiece magnification. Total microscope magnification depends on the objective and other optical components. Evident's stereo microscope specifications illustrate this principle by calculating total magnification from the combined optical configuration. :contentReference[oaicite:6]{index=6}

What is the production lead time?

The production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard models can usually be arranged faster, while customized products may require additional production time.

How do you check the microscope before shipment?

Before delivery, we check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality. The final inspection and documentation are arranged according to the agreed order requirements.

How do you package the microscope for international shipment?

We use cushioning and dust-proof materials, place the microscope in an individual box, and then use reinforced export cartons. The exact packaging method can be adjusted according to the microscope model, order quantity, and shipping method.

What payment terms do you support?

Payment is arranged according to the order agreement. A common arrangement is a deposit followed by the balance before shipment. The exact terms should be confirmed when the order is placed.

Can you arrange shipping to overseas customers?

Yes. We can work with air freight, sea freight, express delivery, or another suitable transportation method depending on the destination, order size, delivery schedule, and customer requirements.

Can the microscope be customized?

Customization can be discussed according to the required microscope model, optical configuration, accessories, application, and order quantity. Because customization can affect production and inspection time, we recommend confirming the complete technical requirements before production.

Conclusion: A Practical Binocular Stereo Microscope for Real-World Observation

When I look at the WF10x/20mm Stereo-microscope Binocular Stereo Microscope, I see it as a practical observation tool rather than simply another microscope specification.

The binocular viewing system gives users a natural two-eye observation experience. The stereo optical design helps users understand depth and object shape. The WF10x/20mm eyepiece configuration provides a practical basis for general observation, while the final microscope performance depends on the complete optical system.

That combination makes this type of microscope useful across education, electronics assembly, jewelry inspection, precision machinery, laboratory work, repair, and quality control.

From the manufacturing side, we focus on the details that customers actually experience: optical performance, focusing movement, mechanical operation, assembly consistency, accessories, appearance, documentation, and export packaging.

At Ningbo Huaguang Precision Instrument Co., Ltd., we have built our business around educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding. With products exported to more than 20 countries and regions, we understand that international customers need not only a working microscope but also clear communication, stable production, suitable documentation, and reliable delivery.

If you are sourcing a WF10x/20mm binocular stereo microscope for a school, laboratory, electronics workshop, jewelry inspection station, repair bench, or industrial inspection application, I recommend starting with the actual object you need to observe. Once the object, working distance, magnification requirements, lighting, accessories, and operating environment are clear, choosing the right microscope becomes much easier.

For us, good microscope manufacturing is not about adding complicated words to a specification sheet. It is about making the instrument practical to use, consistent to produce, safe to transport, and useful in the customer's real working environment.
