When I work with small components, surface details, or precision parts, I do not only want to make the object look bigger. I want to see it clearly, keep a comfortable working position, and check the details without making the inspection process complicated. That is where our Supply 0.7X-4.5X Stereo Microscope with Screen becomes useful.

We designed this type of stereo microscope around practical observation. The 0.7X-4.5X magnification range gives users room to move from a wider view to closer detail inspection, while the screen provides a convenient way to observe the magnified image. Instead of asking every operator to work through an eyepiece all the time, a screen-based setup can make shared inspection and demonstration easier.

At Ningbo Huaguang Precision Instrument Co., Ltd., we have been involved in educational microscopes, Industrial Inspection microscopes, Jewelry Inspection microscopes, optical components, and precision injection molding. Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. We understand that an industrial microscope is not simply an optical product. It needs to fit the actual working process of the customer.

For this reason, I pay attention to several things when discussing a stereo microscope with customers: what they need to inspect, how large the sample is, how much magnification they really need, how they want to view the image, how much room they need to handle the sample, and whether the microscope will be used occasionally or for long inspection sessions.

1. What Is the 0.7X-4.5X Stereo Microscope with Screen?

A stereo microscope is different from a conventional Microscope Used mainly for very thin or prepared specimens. It is intended for observing solid objects and surface features while maintaining a useful three-dimensional impression. This makes it practical for parts that need to be handled, adjusted, repaired, sorted, or checked during observation.

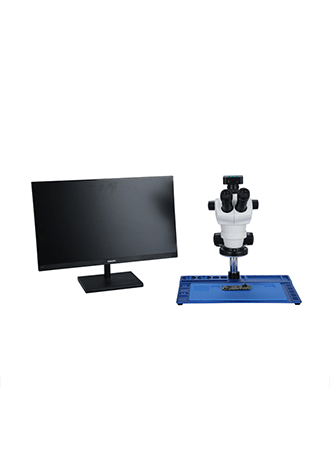

Our 0.7X-4.5X Stereo Microscope with Screen is positioned as a practical inspection instrument for users who need variable magnification and convenient visual display. The 0.7X lower magnification setting is useful when I need to see a larger area of the sample. As I move toward 4.5X, the view becomes more focused on smaller details.

This change sounds simple, but it matters in real inspection work. Imagine checking a PCB. At a wider view, I may first want to locate a connector, solder area, or component group. Once I find the area I care about, I can move toward higher magnification to examine the specific detail. The same basic workflow can be useful for jewelry, mechanical components, molded plastic parts, medical device components, and small electronic assemblies.

The screen adds another practical element. A screen can make the magnified image easier to share with another person. In a workshop, for example, an operator can show a defect to a supervisor without requiring both people to look through the same eyepiece. In education, a teacher can demonstrate an object to several students at the same time.

I would not describe the screen as a replacement for every optical viewing method. Rather, it is another way to make inspection more convenient. The best configuration depends on how the microscope will actually be used.

2. How Stereo Observation and Magnification Work

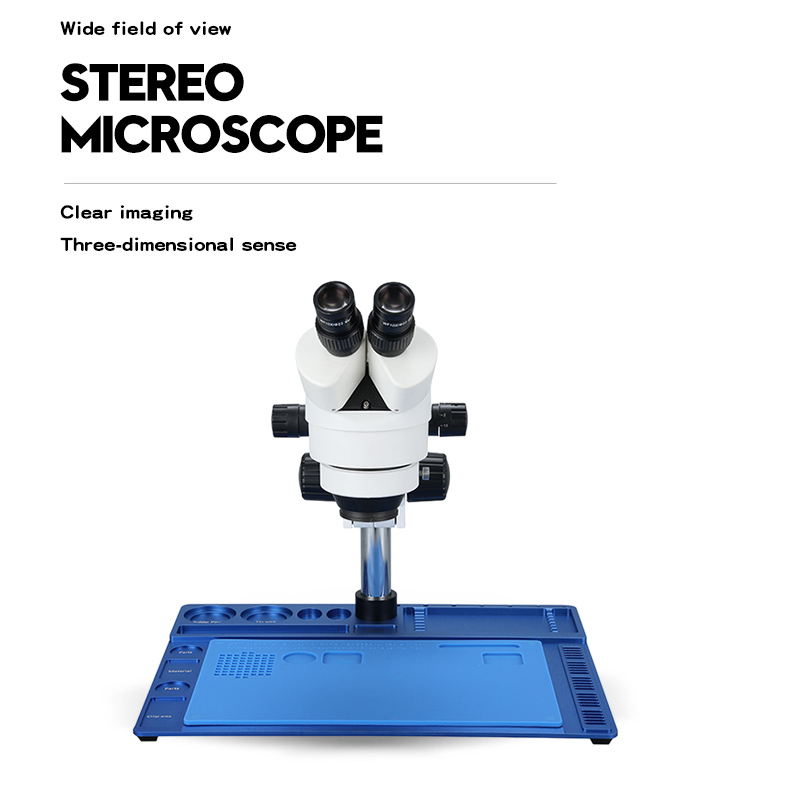

The basic idea behind stereo microscopy is quite easy to understand. The optical system provides slightly different views to the two eyes, which helps the observer perceive the sample with depth. This is one reason stereo microscopes are useful when inspecting solid objects instead of simply looking at a flat image.

When I explain microscope selection to customers, I often point out that magnification is only one part of the picture. A higher number does not automatically mean a better inspection result. Field of view, working distance, depth of field, illumination, optical quality, focusing, and operator comfort all affect how useful the microscope is.

Leica Microsystems explains that zoom range, magnification, field of view, and working distance are important factors when selecting a stereo microscope. A wider field of view helps users keep their orientation on the sample, while a longer working distance gives more room to handle the object beneath the objective.

Evident also explains that lower magnification generally provides greater working distance and depth of field, while increasing magnification helps reveal finer details but reduces these advantages.

That is why I see the 0.7X-4.5X range as a useful working range rather than simply a number printed on a product label. The lower end can help with positioning and general observation. The higher end can help when the operator needs to examine smaller details.

Source: Leica Microsystems, “Key Factors to Consider When Selecting a Stereo Microscope”; Evident Scientific stereo microscope technical information.

3. Why the 0.7X-4.5X Range Is Practical for Inspection

In actual production environments, I rarely recommend choosing magnification simply because the number looks impressive. The better question is: what does the operator need to see, and how will the operator work with the sample?

At lower magnification, the operator can normally see a larger portion of the object. This can be useful for positioning parts, locating a defect, checking general surface condition, or understanding the relationship between different components.

At higher magnification, attention can move toward a smaller area. This can be useful for checking fine edges, small marks, solder joints, connectors, tiny mechanical features, surface scratches, assembly details, or jewelry workmanship.

With our 0.7X-4.5X Stereo Microscope with Screen, the user can therefore change the viewing level according to the inspection stage. I find this especially useful in workflows where the operator does not inspect exactly the same point every time.

For example, a PCB inspection may begin with a broad visual check. The operator can locate the target component, move into a closer view, and then inspect a specific solder joint or connection. A jewelry worker may first look at the whole piece and then move closer to examine a stone setting, edge, engraving, or surface finish.

The same principle applies to precision molded parts. A wider view helps check the overall shape and surface. A closer view can then be used for small marks, edges, burrs, or molding details.

This is also why I recommend confirming the actual application before finalizing a microscope configuration. The best optical setup for jewelry inspection may not be identical to the setup used for PCB repair or classroom observation.

4. Screen Viewing Makes Shared Inspection Easier

The screen is one of the most practical features of this product concept. When an inspection image is displayed on a screen, the operator does not always need to keep another person beside the eyepiece. This can make communication easier during training, quality checks, product discussions, and demonstrations.

For production inspection, this can be helpful when an experienced technician needs to explain a defect to a new operator. Instead of saying “look here,” the technician can point directly to the enlarged image on the screen.

For education, screen viewing can make microscope demonstrations more natural. A teacher can display the sample to a group instead of asking students to take turns looking through an eyepiece.

For laboratories, a screen-based observation system can also make group discussion more convenient. Researchers or technicians can look at the same displayed image while discussing the sample.

There is another simple benefit: posture. Long periods of inspection can be tiring when the operator has to maintain one fixed viewing position. Depending on the complete configuration, a screen can give the user more freedom to arrange the working position.

Of course, exact screen size, image resolution, camera configuration, connection method, and software functions should be confirmed according to the specific configuration ordered. I do not recommend treating those details as universal specifications unless they are listed in the quotation or technical data sheet.

Source: Leica Microsystems information on stereo microscopy and digital inspection systems; Evident Scientific information on stereo microscopes and digital observation.

5. Where I Would Use This Stereo Microscope

Electronics and PCB Inspection

Electronics is one of the most natural application areas for a stereo microscope. Operators often need to inspect small components, connectors, solder areas, circuit boards, and assembly details.

The combination of adjustable magnification and screen viewing can support both general inspection and closer observation. Evident specifically notes that stereo microscopes are suitable for electronics and PCB inspection, including defect checking, solder joint inspection, component placement, and rework.

For repair work, working space is also important. The operator may need to hold a tool, move a component, or adjust a part while looking through the microscope. This is one reason I always suggest considering working distance instead of looking only at maximum magnification.

Jewelry Inspection

Jewelry inspection requires attention to small surface features, edges, settings, stones, polishing marks, and workmanship. A stereo microscope can provide a more natural three-dimensional view of solid pieces than a flat image alone.

For jewelry workshops, the microscope may be used during manufacturing, repair, setting, polishing, or final quality checking. The ability to move between a wider view and a closer view can be useful when the operator needs to inspect both the whole piece and a small working area.

Precision Machinery

Small mechanical components often have uneven surfaces, holes, edges, grooves, or fine machining features. A stereo microscope can help operators inspect these details while keeping the sample visible as a three-dimensional object.

This is particularly useful for quality control. The operator may need to compare different batches, check a machined edge, inspect a small defect, or verify whether a component has been assembled correctly.

Medical Equipment Components

Manufacturing and inspection of small medical equipment components can also benefit from magnified visual observation. The exact microscope configuration should be selected according to the component size, inspection method, cleanliness requirements, documentation needs, and production environment.

Education and Laboratory Work

A stereo microscope is also useful outside industrial production. In schools and training environments, users can observe solid samples, insects, plant structures, materials, small mechanical parts, and other objects.

The screen is particularly useful for teaching because several people can view the same enlarged image. It makes explanation more direct and reduces the need for students to take turns at a single eyepiece.

Repair and General Quality Inspection

Workshops often need a microscope that is not tied to only one type of product. Mobile electronic repair, component checking, plastic inspection, small hardware examination, and general product quality control can all require magnified observation.

For these applications, I focus on ease of use and practical magnification rather than chasing specifications that the operator may rarely use.

6. Comparing Stereo Microscope Design with Other Inspection Approaches

Customers sometimes ask me why they should use a stereo microscope instead of a compound microscope or a simple digital camera. The answer depends on the sample and the work process.

A compound microscope is normally selected when the user needs high magnification and examination of very small structures, often with prepared specimens. A stereo microscope is generally more suitable for larger solid objects that need to be manipulated or inspected from different angles.

A basic digital camera can record an image, but it does not necessarily provide the same optical workflow, depth perception, or hands-on inspection convenience. A screen-equipped stereo microscope combines optical magnification with convenient display.

Source: Leica Microsystems and Evident Scientific guidance on stereo microscopy, magnification, working distance, field of view, and industrial inspection.

7. How We Manufacture and Prepare the Microscope

For me, the manufacturing process does not end when the microscope looks complete on the assembly bench. Optical products need to be checked as a complete system because small problems in focusing, mechanical movement, accessories, or assembly can affect the user's experience.

Our production process depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard configurations can normally be arranged more quickly. Customized orders may require additional preparation because the optical and mechanical configuration needs to be confirmed before production.

The first stage is configuration confirmation. We need to understand what the customer actually needs, including magnification requirements, screen arrangement, accessories, application, quantity, and delivery destination.

After the configuration is confirmed, the relevant components are prepared and assembled. Optical components need careful handling, while mechanical parts need proper adjustment. The focusing system must move smoothly enough for practical operation, and the complete microscope needs to remain stable during observation.

We also pay attention to the relationship between optical components and mechanical parts. A microscope may have good individual components, but the final user experience depends on how those components work together.

Before delivery, we check optical performance, focusing operation, mechanical functions, accessories, appearance, and overall assembly quality. For products with specific inspection or certification documents, the applicable documents are prepared according to the agreed order requirements.

Our company has supplied microscope products to customers in more than 20 countries and regions. International orders also require careful attention to packaging. A microscope can perform well in the factory but still encounter problems if it is not protected properly during transportation.

8. Packaging, Delivery, Payment and International Shipping

For standard microscope orders, the production cycle depends on the selected model, available components, quantity, and current production schedule. Customized configurations can require additional time because we need to confirm the technical details before final assembly.

Before shipment, I want the customer to receive more than a product box. The delivered package should contain the agreed microscope configuration, accessories, user documents, and applicable inspection or certification documents according to the order.

For payment, the arrangement follows the sales agreement. A common structure is a deposit followed by the balance before shipment, but the exact payment terms are confirmed with each order.

Transportation can be arranged by air freight, sea freight, express delivery, or another suitable logistics method. The choice depends on destination, order size, delivery schedule, and customer requirements.

For packaging, we use cushioning and dust-proof protection around the microscope and accessories. The product is placed in an individual box and then protected inside reinforced export cartons. For international orders, the purpose is simple: reduce the risk of damage caused by handling, vibration, movement, and long-distance transportation.

I also recommend that customers confirm the final packing list before shipment. This is especially important for customized orders with additional accessories, screens, stands, adapters, or other components.

9. Why Choose Ningbo Huaguang Precision Instrument Co., Ltd.?

We are based in Haishu District, Ningbo, a location with convenient transportation and a strong manufacturing environment. Our business covers educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.

That product background is important because it gives us experience across different Microscope Applications. An educational microscope and an industrial inspection microscope may look similar from a distance, but their users often have very different requirements.

When an industrial customer talks to us about a microscope, I try to understand the inspection task first. What is the sample? How large is it? What details need to be seen? Does the operator need to manipulate the sample? Is screen viewing important? Does the microscope need to be used for several hours every day?

These questions are more useful than simply asking for the highest magnification.

We have also developed various series of nanometer photocatalytic air purifiers and air-conditioning purification equipment. Our company has established a quality management system certified to ISO9001, while the company information supplied for our products also includes CE and RoHS certification. The exact certification status and applicable documents for each current microscope configuration should always be confirmed with us before purchase.

Our working philosophy is simple: “Nothing is perfect, only better and better.” In practical terms, this means we continue to improve product design, quality control, service, and communication with customers.

We understand that an overseas buyer is not only buying a microscope. The buyer is also relying on us for configuration confirmation, production coordination, inspection, packaging, documents, and shipment. That is why communication before the order is an important part of our service.

10. Frequently Asked Questions

What is the magnification range of this stereo microscope?

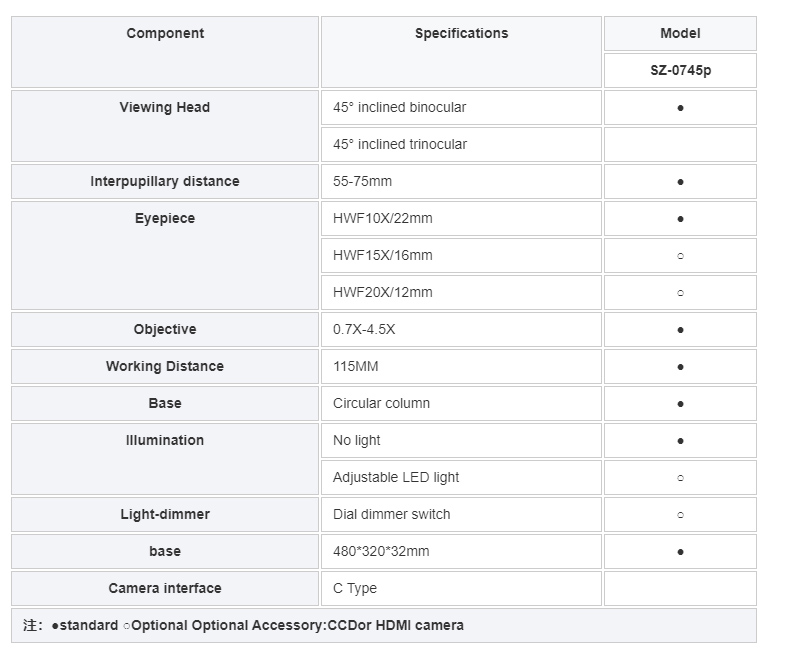

The product is named Supply 0.7X-4.5X Stereo Microscope with Screen, indicating a 0.7X-4.5X optical range for the specified configuration. The final total magnification seen by the user can depend on the complete optical system, including the objective and eyepiece configuration. We recommend confirming the exact configuration before ordering.

Is this microscope suitable for PCB inspection?

Yes. Stereo microscopes are widely used for electronics and PCB inspection. They can support observation of components, solder joints, connectors, surface defects, and assembly details. The screen can also make it easier for another person to observe the inspection image during training or quality discussions.

Can it be used for jewelry inspection?

Yes. Stereo microscopes are commonly useful for inspecting solid objects such as jewelry and small precision parts. The 0.7X-4.5X range can support broader observation as well as closer inspection, depending on the actual optical configuration.

Why is working distance important?

Working distance is the distance between the front of the objective and the sample surface when the sample is in focus. A useful working distance gives the operator more room to handle the sample or use tools. Leica and Evident both identify working distance as an important consideration when selecting a stereo microscope.

Does higher magnification always mean better inspection?

No. Higher magnification can reveal smaller details, but it can also reduce the field of view and working distance. Depending on the optical design, depth of field can also become smaller. The correct magnification is the one that matches the inspection task.

What is the benefit of using a screen?

A screen allows the magnified image to be viewed by more than one person at the same time. This can be useful for training, demonstrations, inspection discussions, repair work, and quality control. Exact screen and digital functions depend on the selected configuration.

Can the microscope be customized?

Customization depends on the microscope model and the components required. We can discuss the application, optical configuration, accessories, quantity, packaging, and delivery requirements before confirming the order.

How long does production take?

The production cycle depends on the selected model, optical configuration, accessories, quantity, and customization requirements. Standard models can generally be arranged more quickly, while customized configurations may need additional production time.

How do you check the microscope before shipment?

Before delivery, we check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality. The exact inspection documents supplied with the order depend on the agreed configuration and requirements.

How is the microscope packed for international shipping?

We use cushioning and dust-proof protection, an individual product box, and reinforced export cartons. The purpose is to reduce transportation risks during handling and long-distance shipping.

Conclusion

A useful microscope does not need to be complicated. It needs to match the work.

Our Supply 0.7X-4.5X Stereo Microscope with Screen is designed around this idea. The 0.7X-4.5X range gives users flexibility when moving between wider observation and closer inspection, while screen viewing makes it easier to share the magnified image during inspection, training, repair, and quality control.

From electronics and PCB boards to jewelry, precision machinery, medical equipment components, education, laboratories, and workshop inspection, the microscope can support many tasks where users need a clear view of small solid objects and surface details.

At Ningbo Huaguang Precision Instrument Co., Ltd., we focus on practical optical products, stable production, careful inspection, export packaging, and responsive customer service. If you are looking for a 0.7X-4.5X stereo microscope with screen, the most useful first step is to tell us what you inspect, how large the sample is, what level of detail you need to see, and how you expect operators to use the microscope. From there, we can discuss the appropriate configuration rather than simply choosing specifications by numbers.
