Digital Microscope vs Stereo Microscope: Key Differences Explained

2026-09-16 11:00:41

Digital Microscope vs Stereo Microscope: Key Differences Explained

Choosing between a Digital Microscope and a Stereo Microscope depends mainly on how the specimen needs to be observed, documented, and inspected. Although both microscope types are designed to enlarge small objects, they use different viewing methods and offer different practical advantages. A Digital Microscope normally combines optical magnification with a digital camera and screen, while a Stereo Microscope provides direct binocular or trinocular optical observation with depth perception.

The difference becomes important when selecting equipment for Industrial Inspection, electronics, education, jewelry work, biological observation, research, or routine quality control. Understanding the differences between a Digital Microscope and a Stereo Microscope can help users choose an appropriate optical system, magnification range, working distance, lighting arrangement, focusing method, and image workflow.

What Is a Digital Microscope?

A Digital Microscope is a microscope system that uses optical magnification together with a digital imaging device. Instead of relying only on direct eyepiece observation, the enlarged image can be displayed on a monitor or other digital screen. Depending on the configuration, the image can also be captured for documentation, inspection records, teaching, or further analysis.

The basic working process of a Digital Microscope begins when light illuminates the specimen. The optical system magnifies the object, and an image sensor captures the magnified view. The digital image is then displayed on a screen. This arrangement makes it convenient for several people to observe the same specimen at the same time.

A Digital Microscope is commonly considered when image sharing, recording, measurement, or screen-based observation is important. It can be useful in manufacturing inspection, electronics, laboratories, education, research, small-part examination, and other applications where enlarged images need to be viewed or documented.

What Is a Stereo Microscope?

A Stereo Microscope is an optical microscope designed to provide a three-dimensional appearance of an object. It uses separate optical paths for the observer's two eyes, creating depth perception. This makes a Stereo Microscope particularly useful for examining the surface, shape, structure, and spatial relationships of larger three-dimensional objects.

A Stereo Microscope normally provides a relatively comfortable working position and useful working distance. Operators can inspect components while manipulating them under the objective. This is one reason a Stereo Microscope is frequently used for assembly, repair, sorting, surface inspection, electronics work, Jewelry Inspection, and other hands-on tasks.

Unlike a digital imaging system that primarily presents the enlarged image on a screen, a Stereo Microscope allows the operator to look directly through the optical system. The resulting depth perception can make it easier to understand the physical shape and position of three-dimensional objects.

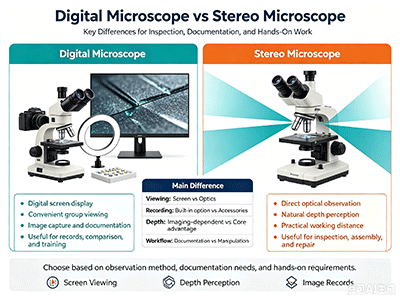

Digital Microscope vs Stereo Microscope: The Main Difference

The most important difference between a Digital Microscope and a Stereo Microscope is the way the enlarged image is presented. A Digital Microscope uses digital imaging to display the specimen on a screen, while a Stereo Microscope provides direct optical observation through separate viewing paths.

Optical System and Image Formation

The optical design is another important difference between a Digital Microscope and a Stereo Microscope. A Digital Microscope ultimately converts the optical image into a digital image through an image sensor. The quality of the final observation therefore depends on both the optical system and the digital imaging system.

A Stereo Microscope creates separate optical views for the left and right eyes. The brain combines these views to provide a perception of depth. For users inspecting three-dimensional components, this can make changes in height, surface shape, edges, and physical positioning easier to recognize.

Neither system should be selected only by looking at a nominal magnification number. Optical clarity, illumination, working distance, focusing control, specimen size, and viewing comfort can have a significant effect on the actual inspection experience.

Magnification Differences

Magnification is an important specification when comparing a Digital Microscope with a Stereo Microscope, but higher magnification does not automatically mean better inspection results. The useful magnification range should match the size and details of the specimen.

A Digital Microscope can make enlarged images appear on a large display, which may give users considerable flexibility when observing small details. However, screen enlargement and true optical magnification are not exactly the same concept. Digital enlargement can increase the apparent image size without creating additional optical detail.

A Stereo Microscope provides optical magnification through its objective and eyepiece system. Its practical strength is often the combination of magnification, depth perception, and working distance. This combination can be particularly useful when an operator needs to manipulate a specimen while observing it.

Working Distance and Handling Space

Working distance refers to the space between the objective and the specimen when the microscope is focused. When comparing a Digital Microscope and a Stereo Microscope, working distance should be considered together with the size of the object and the type of inspection work.

A suitable working distance gives the operator enough room to position the specimen, tools, or components. This matters in electronics assembly, small-part inspection, jewelry repair, mechanical component examination, and other hands-on applications.

A Stereo Microscope is often selected for tasks where the operator needs to work directly beneath the objective. The physical space around the specimen can make a significant difference to usability. A Digital Microscope can also be configured for hands-on inspection, but the appropriate stand, camera position, lens, and lighting arrangement need to match the task.

Depth Perception: Digital Microscope vs Stereo Microscope

Depth perception is one of the clearest practical differences between these two microscope types. A Stereo Microscope is specifically designed to provide stereoscopic viewing. The observer sees slightly different views through the two optical paths, which creates a three-dimensional visual effect.

A Digital Microscope normally presents a two-dimensional image on a screen. While lighting, focus, image processing, and viewing techniques can provide useful information about surface height and shape, the basic screen image does not provide the same direct stereoscopic viewing experience.

For flat surfaces, printed patterns, electronic boards, markings, and many inspection tasks, a digital image can be highly useful. For objects with noticeable height, depth, edges, or complex physical structures, the three-dimensional observation of a Stereo Microscope can be more relevant to the inspection method.

Digital Microscope for Inspection and Documentation

A Digital Microscope is particularly useful when inspection results need to be viewed by several people or saved as digital records. The image can be displayed on a monitor, making it easier for operators, teachers, engineers, technicians, and students to observe the same specimen.

Digital images can also support inspection documentation. Depending on the system and software, users may capture images, organize records, compare observations, or add measurements and annotations. These functions can be valuable when a manufacturer needs to keep visual inspection records or communicate findings between different departments.

For quality control, the practical value of a Digital Microscope is therefore not limited to magnification. Its ability to connect observation with digital documentation can become an important part of the inspection workflow.

Stereo Microscope for Hands-On Inspection

A Stereo Microscope is well suited to applications where the operator needs to observe and manipulate an object at the same time. The direct optical view and stereoscopic effect help users understand the physical structure of the specimen while working on it.

For example, a technician may use a Stereo Microscope to inspect a small mechanical component, examine an electronic assembly, check a surface, perform detailed assembly work, or inspect jewelry. The operator can maintain visual contact with the object while positioning it or using suitable tools.

This makes the Stereo Microscope especially practical when inspection is closely connected with manual operation. The microscope becomes part of the working station rather than simply an imaging device.

Lighting Considerations

Lighting has a major influence on both a Digital Microscope and a Stereo Microscope. Even a good optical system may provide poor inspection results if the specimen is badly illuminated.

Different objects may require different lighting approaches. A flat reflective surface can behave differently from a dark component, transparent material, curved object, or textured surface. The lighting arrangement should therefore be selected according to the specimen rather than simply choosing the brightest available light.

For a Digital Microscope, lighting also affects the quality of the captured image. Excessive brightness can reduce useful surface information, while insufficient illumination can make small details difficult to recognize.

For a Stereo Microscope, proper illumination improves direct visual observation and helps reveal surface structure. Adjustable lighting can be especially useful when inspecting objects with different colors, finishes, textures, and shapes.

Which Microscope Is Suitable for Electronics Inspection?

Both a Digital Microscope and a Stereo Microscope can be used for electronics inspection, but the appropriate choice depends on the inspection process.

A Digital Microscope can be useful when engineers need enlarged screen images, image recording, documentation, or group viewing. It can support observation of circuit boards, solder joints, connectors, component surfaces, markings, and other small details.

A Stereo Microscope can be useful when an operator needs to inspect and manipulate electronic components at the same time. Its depth perception and direct optical viewing can support tasks involving assembly, rework, positioning, and physical inspection.

Which Microscope Is Suitable for Jewelry Inspection?

Jewelry inspection often involves small objects with curved surfaces, reflective materials, fine details, and complicated three-dimensional structures. A Stereo Microscope can provide useful depth perception when examining gemstones, settings, surfaces, edges, and small components.

A Digital Microscope can also be useful when jewelry images need to be displayed, recorded, shared, or documented. For businesses that require visual records or teaching materials, screen-based observation can be convenient.

The correct choice depends on whether the main requirement is direct three-dimensional inspection, digital documentation, group viewing, or a combination of these functions.

Digital Microscope vs Stereo Microscope for Education

In education, both systems can support practical learning, but they create different classroom experiences. A Digital Microscope can display an enlarged image on a screen, allowing multiple students to observe the same specimen. This can simplify demonstrations and group discussion.

A Stereo Microscope provides direct optical observation and is useful for teaching students about the physical structure of objects. Students can examine small specimens, components, plants, insects, materials, and other three-dimensional objects while developing practical observation skills.

The choice should therefore consider classroom size, teaching method, specimen type, image documentation requirements, and whether individual or group observation is more important.

Digital Microscope vs Stereo Microscope for Laboratories

Laboratory requirements vary significantly. A Digital Microscope may be useful where image capture, screen display, documentation, or shared observation is required. A Stereo Microscope may be more suitable when users need direct three-dimensional observation of larger specimens or objects.

For biological applications involving cells, tissues, microorganisms, and prepared specimens, the microscope should be selected according to the specimen preparation method and required optical configuration. A Digital Microscope may support image documentation, while a suitable optical microscope can provide the viewing characteristics required for laboratory observation.

Image Documentation and Sharing

Image documentation is one of the strongest practical reasons to consider a Digital Microscope. Instead of relying entirely on the operator's visual description, users can capture images for records, reports, training, comparison, or communication.

A Stereo Microscope can also support image documentation when paired with suitable imaging accessories. However, the basic design of a Stereo Microscope is centered on direct stereoscopic observation rather than screen-based image capture.

For organizations that regularly need to share inspection images between operators, engineers, teachers, or customers, the digital workflow can be an important factor in equipment selection.

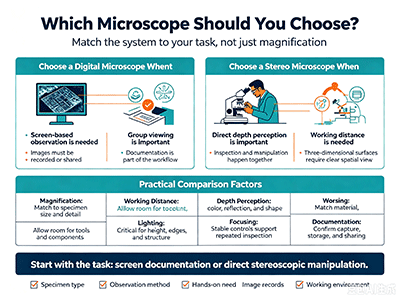

How to Choose Between a Digital Microscope and Stereo Microscope

When choosing between a Digital Microscope and a Stereo Microscope, start with the actual inspection task rather than the microscope name. Ask what the operator needs to see, how large the object is, whether the object needs to be manipulated, and whether images must be recorded.

• Choose a Digital Microscope when screen-based observation and image documentation are important.

• Consider a Stereo Microscope when direct three-dimensional viewing is a major requirement.

• Check the required magnification range before selecting the optical configuration.

• Consider working distance if tools or hands need to operate under the objective.

• Evaluate lighting according to the material, surface, color, and shape of the specimen.

• Consider whether individual observation or group viewing is more important.

• Check focusing control and operator comfort for long inspection sessions.

• Consider image capture and documentation requirements before finalizing the system.

Common Mistakes When Selecting a Microscope

One common mistake is selecting a microscope based only on maximum magnification. A high magnification number does not guarantee useful detail. Image clarity, illumination, working distance, focus control, optical quality, and specimen characteristics all affect the practical result.

Another mistake is assuming that a Digital Microscope is automatically better because it provides a large screen image. Screen viewing is useful, but the inspection task may require direct depth perception and hands-on manipulation.

Similarly, choosing a Stereo Microscope without considering documentation requirements can create difficulties if inspection images later need to be recorded and shared.

The better approach is to define the workflow first and then select the microscope configuration around that workflow.

Digital Microscope vs Stereo Microscope: A Practical Comparison

Why Optical Quality Still Matters

Whether users select a Digital Microscope or a Stereo Microscope, optical quality remains fundamental. Magnification is useful only when the optical system can provide a clear and stable image.

Important considerations include image clarity, contrast, focusing stability, illumination, working distance, and mechanical control. For professional inspection, the microscope should also provide a configuration that matches the operator's daily workflow.

A reliable microscope should be practical to operate rather than simply impressive on a specification sheet. Users should consider how the equipment performs during repeated observation, adjustment, inspection, documentation, and handling.

Digital Microscope vs Stereo Microscope: Final Considerations

The comparison between a Digital Microscope and a Stereo Microscope is not simply a question of which microscope has greater magnification. The two systems are designed around different observation methods.

A Digital Microscope is particularly useful when users need screen-based viewing, digital image capture, inspection documentation, image sharing, education, or research workflows. Its digital imaging system can make enlarged observations easier to display and record.

A Stereo Microscope is particularly useful when direct optical observation, depth perception, working distance, and hands-on inspection are important. It can be practical for electronics, jewelry, small mechanical parts, assembly, repair, education, and other three-dimensional inspection tasks.

When selecting between a Digital Microscope and a Stereo Microscope, consider the specimen, required magnification, working distance, lighting, focusing method, observation method, documentation requirements, and daily workflow. Matching these factors to the application will help users build a microscope setup that is practical for their actual inspection and observation needs.
