When I first discuss a 20x Trinicular Stereo Microscope Surgical Microscope with a customer, I do not start by talking about the highest magnification or the camera resolution. I usually ask a more practical question: what exactly are you trying to see, and what will you do after you see it?

That question matters because a Microscope Used for precision inspection, dental work, laboratory observation, electronics assembly, Jewelry Inspection, or surgical-related visualization can have very different requirements. A microscope may need a comfortable binocular view, stable focusing, enough working space, good illumination, or a third optical port for digital imaging.

At Ningbo Huaguang Precision Instrument Co., Ltd., I work with these practical requirements in mind. Our company specializes in educational microscopes, Industrial Inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding. We supply microscope products to customers in more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan.

The product name 20x Trinicular Stereo Microscope Surgical Microscope contains several useful search terms, but each part also tells us something about the instrument. “20x” indicates a magnification level in the configuration, “trinocular” describes an optical head with a third imaging port, and “stereo microscope” refers to the three-dimensional observation approach. The term “surgical microscope” points toward applications where detailed, stable observation is important.

One important point comes first: the exact optical configuration must always be checked before using a microscope in a clinical or surgical environment. A general stereo microscope should not automatically be described as a medical surgical device. Actual medical use depends on the model, intended purpose, applicable regulations, accessories, and certification requirements.

1. What Is a 20x Trinicular Stereo Microscope Surgical Microscope?

Let me start with the basic structure.

A stereo microscope uses two optical paths so the observer can view the sample through both eyes and obtain a three-dimensional impression. The two views contain slightly different visual information, and the brain combines them into a depth-rich image.

This is one of the main reasons stereo microscopes are so useful for small objects that are not completely flat. When I inspect a tiny mechanical component, for example, I may need to see an edge, hole, step, groove, wire, or curved surface. A simple enlarged image shows the feature, but a stereoscopic view can make its shape and position easier to understand.

Research on surgical microscopes also describes stereopsis as an important feature of binocular surgical microscopy because the two optical channels provide depth information that can help the observer understand the shape, orientation, and position of three-dimensional structures. :contentReference[oaicite:0]{index=0}

The word trinocular adds another useful function. In simple terms, the microscope has two viewing paths for the operator and an additional optical path for a camera or imaging device. Commercial Trinocular Stereo Microscope systems commonly use this third port for photographs, video, or digital documentation. For example, AmScope describes a 20X/40X trinocular stereo microscope with a dedicated port for photographic or video capability. :contentReference[oaicite:1]{index=1}

Nikon also offers trinocular stereo microscope systems with a camera port and optical adapter, allowing direct digital imaging while retaining stereo observation through the eyepieces. :contentReference[oaicite:2]{index=2}

For me, that combination is what makes this type of microscope interesting. I can use the eyepieces for direct hands-on observation and use the camera path when I need an image on a computer, monitor, or recording system.

Source: Nikon, AmScope, and a peer-reviewed review of surgical microscopy describe binocular/stereo observation and camera or imaging integration in different microscope systems. :contentReference[oaicite:3]{index=3}

2. How Does the 20x Trinocular Stereo Microscope Work?

The operating principle is actually quite easy to understand.

Light reaches the sample and is collected by the objective. The optical system then creates enlarged images that travel through separate left and right viewing paths. The two eyes receive slightly different views, and the brain combines them to create the sense of depth.

That depth is particularly helpful when I am working with small three-dimensional objects.

Imagine a small electronic component on a circuit board. I may need to inspect a solder joint, component lead, connector, or tiny wire. The important information is not only whether the part exists. I also need to see its height, shape, position, and relationship with nearby components.

The same principle applies to jewelry. A gemstone setting, polished surface, engraving, tiny joint, or small scratch can have a very different appearance depending on lighting and viewing angle.

For surgical or dental applications, depth perception becomes even more important. A scientific review of surgical microscopes explains that stereoscopic depth can help observers understand complex three-dimensional anatomical relationships and shapes. :contentReference[oaicite:4]{index=4}

What Does 20x Mean?

This is one area where I recommend buyers slow down.

“20x” does not necessarily mean that every possible configuration of the microscope always produces exactly 20x total magnification. Total magnification is normally related to the objective, eyepiece, zoom position, and any auxiliary lens.

For example, a commercial trinocular stereo microscope may list 20X and 40X magnification powers using different optical combinations. Another system may offer a continuous zoom range and reach 20x at a particular setting. AmScope lists a 20X/40X configuration on one trinocular stereo microscope, while another model provides multiple magnification settings through zoom objectives and eyepieces. :contentReference[oaicite:5]{index=5}

So when I receive an inquiry saying “I need a 20x microscope,” I usually ask for more information before confirming the exact optical configuration.

That prevents a common purchasing mistake: comparing one manufacturer’s 20x number with another manufacturer's 20x number as if the two systems must provide exactly the same field of view, working distance, or image quality.

How Does the Trinocular Port Work?

The third optical port receives light from the microscope optical system and sends it toward a camera or imaging device.

Some systems use an optical switching mechanism so the operator can change how light is distributed between the eyepieces and camera. Nikon, for example, describes an optical path switching lever on its trinocular SMZ745T that allows switching between eyepiece viewing and camera imaging. :contentReference[oaicite:6]{index=6}

Other microscope designs can allow simultaneous viewing and imaging, depending on the optical splitter and configuration.

This is why I do not recommend buying the camera separately without checking the microscope interface. The camera, C-mount or other adapter, optical path, sensor size, and software need to work together.

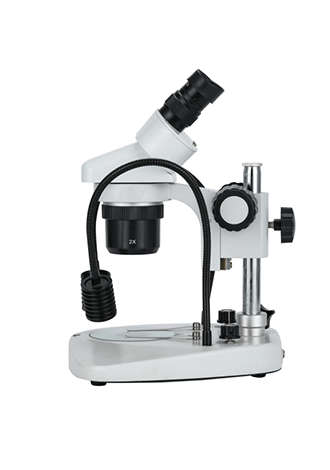

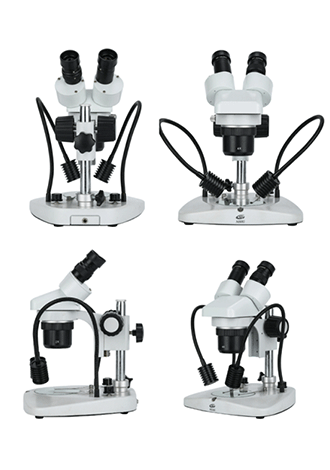

3. Main Features I Look For in This Type of Microscope

When we configure a microscope for a customer, I look at the complete working system rather than one isolated specification.

Binocular Stereo Viewing

The first requirement is a comfortable and clear binocular image.

For long inspection sessions, the operator should be able to adjust the viewing position to suit their eyes. Interpupillary adjustment is important because different users naturally have different eye spacing.

Diopter adjustment can also help users compensate for differences between their eyes. Commercial stereo microscopes commonly include adjustable ocular systems for this reason. AmScope, for example, specifies individual diopter adjustment on its SM-3 trinocular stereo microscope. :contentReference[oaicite:7]{index=7}

Stable Focusing

Focusing is one of those features that seems simple until you use the microscope for several hours.

If the focusing mechanism feels rough, loose, or unstable, the operator spends too much time correcting the image. For inspection work, smooth focusing makes the whole process easier.

Our product information is based around stable focusing and comfortable inspection of Small Parts and surface details. During final inspection, we check focusing and mechanical operation as part of the complete microscope assembly.

Working Distance

Working distance is the space between the objective and the sample when the microscope is correctly focused.

This space is particularly important for hands-on work.

If I need to use tweezers, a soldering iron, a dental instrument, or another tool under the microscope, I do not want the objective sitting too close to the work area.

Commercial stereo microscope designs show how much working distance can vary. Nikon's SMZ745T provides a 115 mm working distance, while an AmScope SM-3 configuration lists 100 mm as its native working distance. :contentReference[oaicite:8]{index=8}

That does not mean one value is automatically better. The right working distance depends on the job, objective, magnification, and available working space.

Camera Connection

A trinocular head is especially useful when image capture is part of the workflow.

For example, I may use the eyepieces to locate a defect and then capture an image through the camera port. The saved image can support a quality report, training document, customer discussion, or internal production record.

Some commercial systems are supplied with USB cameras, while others use C-mount adapters or dedicated camera interfaces. AmScope and Nikon both provide examples of trinocular systems designed for camera integration. :contentReference[oaicite:9]{index=9}

Illumination

Even excellent optics need appropriate lighting.

A shiny metal part, dark plastic component, polished gemstone, circuit board, and biological sample can react very differently to the same light.

Depending on the application, a customer may need incident illumination, transmitted illumination, ring lighting, or another lighting arrangement. The goal is not simply to make the sample brighter. The goal is to make the important features easier to see without excessive glare or unwanted shadows.

Mechanical Stability

A microscope stand supports the entire observation system, so its stability matters.

Some industrial stereo microscopes use boom stands when the operator needs a large working area or flexible positioning. AmScope's 20X/40X trinocular system, for example, uses a single-arm boom stand and is described for electronics, gemology, engraving, and laboratory work. :contentReference[oaicite:10]{index=10}

For a fixed bench application, a more compact stand may be enough. For larger samples or tools, a boom stand can be more practical.

4. Technical Advantages for Precision Work

In my experience, the most useful microscope is not necessarily the one with the longest list of specifications. It is the one that makes the actual task easier.

For precision work, three things usually matter a lot: seeing the detail, keeping the sample accessible, and maintaining a stable view.

Three-Dimensional Observation

With stereo observation, the operator can judge height and shape more naturally than with a flat image.

This can help with small mechanical assemblies, electronic components, jewelry, medical-device parts, and laboratory samples.

In surgical microscopy, stereopsis is considered important because magnification can reduce some ordinary depth cues, while binocular viewing provides additional depth information. :contentReference[oaicite:11]{index=11}

Camera-Based Documentation

The third port makes the microscope more useful when visual information needs to be shared.

A technician can capture a defect. A teacher can display a specimen to a classroom. A laboratory can save an observation. A production engineer can show a component condition to another team.

The camera does not replace direct observation in every situation. In fact, I often consider the eyepiece view and camera image as two different tools serving different purposes.

Longer Working Distance for Hands-On Tasks

Working distance becomes especially valuable when the operator needs to work under the objective.

Commercial examples demonstrate this clearly. Nikon's SMZ745T provides 115 mm of working distance, while WPI's PZMV stereo microscope for life-science applications specifies around 100–110 mm of clearance and is designed around stereotaxic instruments, microinjection, and microsurgery-related work. :contentReference[oaicite:12]{index=12}

Again, I would not select a microscope simply because it has the largest working distance. Magnification, resolution, field of view, and the physical size of the sample all need to be considered together.

Source: manufacturer specifications from AmScope, Nikon, and World Precision Instruments/NBT. These are examples from different product designs and should not be treated as direct product-to-product equivalence. :contentReference[oaicite:13]{index=13}

5. Where Can a 20x Trinocular Stereo Microscope Be Used?

The applications are broader than the word “surgical” might suggest.

Precision Inspection

Industrial inspection is one of the most practical applications.

I can use the microscope to examine small components, surface defects, assembly details, scratches, cracks, edges, holes, and other features that are difficult to see with the naked eye.

Nikon describes its trinocular stereo microscope for production-line work, component surface examination, crack detection, corrosion studies, composite materials, textiles, and machined parts. :contentReference[oaicite:14]{index=14}

Electronics and Semiconductor Work

Electronics assembly often involves very small components and connections.

A stereo microscope can help operators inspect solder joints, connectors, circuit boards, wires, component placement, and other small features. The working distance is important because the operator may need tools underneath the microscope.

For a camera-equipped configuration, images can also support inspection records and training.

Jewelry and Gemstone Inspection

Jewelry inspection is another natural application.

Small scratches, setting conditions, engraving, polishing marks, stone positioning, and tiny joints can require magnified three-dimensional observation.

Commercial 20X/40X trinocular stereo microscope systems are also marketed for gemology, engraving, and related precision applications. :contentReference[oaicite:15]{index=15}

Dental and Medical Equipment Manufacturing

Microscopes are widely used in manufacturing and inspection environments involving small medical components.

For dental laboratories, a stereo microscope can support detailed observation of small structures, restorations, components, and laboratory work. For medical equipment manufacturing, it can be used for inspection and assembly of small parts.

However, I always separate medical manufacturing inspection from clinical surgical use. A microscope intended for an operating room needs to meet the applicable requirements for its intended medical purpose. A general industrial stereo microscope should not be presented as a surgical medical device without the appropriate design and regulatory basis.

Laboratories and Education

In laboratories and classrooms, the trinocular configuration adds an important advantage: the microscope can support both direct observation and digital imaging.

A teacher can show the same microscope image to several students. A researcher can capture an observation. A laboratory technician can document a sample.

Commercial stereo microscope systems from manufacturers such as AmScope and Nikon demonstrate this combination of stereo viewing and digital imaging. :contentReference[oaicite:16]{index=16}

Repair and Maintenance

Repair work often involves small parts, wires, connectors, screws, springs, and damaged surfaces.

A stereo microscope gives the technician a better view while keeping both hands available for the repair. If the system has a camera, the technician can also capture an image before and after the repair.

Surgical Microscopy and Related Research

True surgical microscopes are specialized instruments designed for clinical visualization. A review of surgical microscope technology describes adjustable magnification, bright illumination, stable mechanical design, binocular stereopsis, and integration with advanced imaging technologies as important areas of development. :contentReference[oaicite:17]{index=17}

For that reason, when a customer uses the phrase “surgical microscope,” I first clarify whether they mean a clinical surgical system, a dental microscope, a Laboratory Microscope for surgical research, or simply a stereo microscope intended for close inspection.

6. How We Manufacture and Inspect the Microscope

At Ningbo Huaguang Precision Instrument Co., Ltd., I believe microscope quality starts long before the final packing box.

Our company works across microscope production, optical components, and precision injection molding. We have experience serving educational, industrial, jewelry, laboratory, and precision inspection applications.

The production cycle for a 20x Trinicular Stereo Microscope Surgical Microscope depends on the exact model, optical configuration, accessories, order quantity, and customization requirements. A standard model normally requires less preparation than a highly customized configuration.

Optical Assembly

The optical system needs careful assembly because the final image depends on how the optical components work together.

For a stereo microscope, both viewing paths need to provide a consistent observation experience. If the two sides do not work properly together, the user may have difficulty obtaining a comfortable stereo image.

This is especially important for a microscope that will be used for long inspection sessions.

Mechanical Assembly

The mechanical structure supports the optical system.

We pay attention to the focusing mechanism, observation head, stand, controls, and overall assembly. A microscope may have excellent optical components, but if the mechanical operation is poor, the final user will still have a bad experience.

Final Inspection

Before delivery, we check optical performance, focusing, mechanical operation, accessories, appearance, and overall assembly quality according to the agreed product configuration.

I like this final step because it is where the product is considered as a complete instrument rather than a collection of individual parts.

Camera and Accessory Matching

When a customer requires digital imaging, we also need to confirm the camera-related configuration.

A camera adapter that does not match the optical port can create unnecessary problems. The camera sensor, optical reduction lens, image field, software, connection interface, and display method can all affect the final result.

Commercial products show many different approaches. Nikon uses a 0.55X C-mount adapter in one trinocular system, while AmScope offers configurations with USB cameras and reduction lenses. :contentReference[oaicite:19]{index=19}

That is why we prefer to confirm the complete imaging requirement before finalizing the order.

Quality Management

Ningbo Huaguang Precision Instrument Co., Ltd. has obtained ISO 9001 quality management system certification, and the company states that its products have CE and RoHS certification.

These certifications should be understood correctly. ISO 9001 relates to the organization's quality management system, while CE and RoHS requirements relate to applicable products and regulations. The exact compliance documents should always be confirmed for the specific model and market.

For international buyers, this distinction is important because certification requirements can vary depending on the product, intended use, destination, and applicable legislation.

7. Packaging, Delivery, and Why We Work Closely With Customers

A microscope may spend hours being assembled and inspected, but it still has to survive transportation afterward.

For export orders, we use cushioning and dust-proof protection around the microscope, place the instrument in an individual box, and then use reinforced export cartons. The purpose is simple: reduce the risk of damage caused by movement, impact, dust, and handling during international transportation.

Delivery time depends on the order. Standard products can generally be arranged more quickly, while customized models may need additional production time.

For payment, we follow the agreed commercial terms. A common arrangement is a deposit followed by the balance before shipment, but the final payment terms depend on the order agreement.

For transportation, customers can choose air freight, sea freight, express delivery, or another suitable logistics method according to destination, urgency, shipment size, and budget.

Our international experience also means that communication matters. A customer may be located thousands of kilometers away, so small misunderstandings about magnification, camera interfaces, accessories, packaging, or electrical requirements can become expensive problems later.

For that reason, I prefer to confirm the important points before production starts.

What I Normally Confirm With a Customer

• What material or sample will be inspected?

• What is the approximate sample size?

• What magnification range is required?

• What working distance is comfortable for the application?

• Does the operator need both hands available during inspection?

• Is a camera required?

• Will the camera connect to a computer or monitor?

• Is image recording required?

• What lighting conditions are needed?

• Is the microscope intended for industrial, educational, laboratory, dental, or clinical use?

• What accessories are required?

• What is the destination country?

These questions may seem like a lot at first, but they usually make the purchasing process easier. A microscope is an optical instrument, and the application determines the right configuration.

8. FAQ About 20x Trinicular Stereo Microscope Surgical Microscope

What does 20x mean on a stereo microscope?

20x normally refers to a magnification level within a particular optical configuration. The exact total magnification depends on the objective, eyepiece, zoom setting, and auxiliary lenses. Buyers should check the complete optical specification instead of assuming that every microscope marked “20x” works in exactly the same way.

What is a trinocular stereo microscope?

A trinocular stereo microscope has two viewing paths for binocular stereo observation and an additional optical path for a camera or imaging device. This lets the user combine direct observation with digital imaging, depending on the microscope design.

Can I connect a camera to a 20x trinocular stereo microscope?

Yes, when the microscope has a compatible camera port and adapter. Different models may use C-mount adapters, dedicated photo tubes, USB cameras, HDMI cameras, or other imaging solutions. The exact camera interface should be confirmed before ordering.

Is this microscope suitable for surgery?

That depends on the exact model and intended use. A general-purpose stereo microscope should not automatically be considered a clinical surgical microscope. Clinical surgical applications require equipment specifically designed, validated, and appropriately regulated for the intended medical use.

Why is stereo vision useful in surgical microscopy?

Binocular stereoscopic viewing provides depth information by presenting slightly different views to the two eyes. Research on surgical microscopy describes stereopsis as important for understanding three-dimensional anatomical structures and relationships during magnified observation. :contentReference[oaicite:20]{index=20}

Can this microscope be used for dental applications?

Microscopes with suitable optical and mechanical configurations can be used for dental laboratory or dental-related inspection tasks. If the microscope will be used directly in clinical treatment, the exact medical application and regulatory requirements need to be confirmed before selection.

What is the advantage of a trinocular head over a binocular head?

The main advantage is imaging flexibility. A binocular head is designed primarily for direct two-eye observation, while a trinocular head adds a dedicated camera path. This is useful when the customer wants to capture images, record video, display the microscope view on a monitor, or document inspection results.

What working distance should I choose?

There is no single working distance that is correct for every application. If you need tools under the microscope, a longer working distance may be useful. If the sample is very small and high magnification is the priority, a different optical configuration may make more sense. The sample, tools, magnification, and stand should all be considered together.

How long does production take?

The production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard configurations are generally easier to arrange, while customized orders may need additional preparation and production time.

How is the microscope packed for international shipping?

We protect the microscope with cushioning and dust-proof materials, use an individual box, and then place it in reinforced export cartons. The exact packaging can be adjusted according to the product configuration and transportation requirements.

What information should I provide when requesting a quotation?

I recommend sending the intended application, sample type, approximate sample size, required magnification, working distance requirements, camera requirements, lighting preference, quantity, and destination country. If possible, a sample photograph or an image of your existing inspection setup is also useful.

Final Thoughts

When I look at a 20x Trinicular Stereo Microscope Surgical Microscope, I do not see only a magnification number. I see a complete observation system made up of optics, mechanical structure, illumination, camera compatibility, working distance, focusing, accessories, and the actual working habits of the operator.

For precision inspection, the stereo view can make small three-dimensional features easier to understand. For documentation, the trinocular port can connect the microscope to a camera. For hands-on work, a suitable working distance gives the operator more room. For education and laboratory use, digital imaging can make the microscope view easier to share.

At Ningbo Huaguang Precision Instrument Co., Ltd., we manufacture microscope products for educational, industrial, jewelry, laboratory, and precision inspection applications. Our products are exported to more than 20 countries and regions, and we combine optical production, mechanical assembly, quality inspection, export packaging, and after-sales service.

Our approach is simple. Before recommending a configuration, we want to understand what the customer actually needs to inspect. We then work through magnification, optical configuration, working distance, camera requirements, illumination, accessories, production time, packaging, and delivery.

If you are searching for a 20x trinocular stereo microscope, a trinocular stereo microscope with camera, a 20x stereo microscope for precision inspection, or a microscope system for detailed laboratory and industrial observation, the right starting point is your application.

Once I know what you need to observe and how you plan to use the microscope, it becomes much easier to determine the right configuration. That is how I prefer to approach microscope selection: practical first, specifications second, and the final user experience always kept in view.

Technical References

• Nikon Instruments, SMZ745 / SMZ745T Stereo Microscopes. :contentReference[oaicite:21]{index=21}

• AmScope, SW-3T24 Trinocular Stereo Microscope. :contentReference[oaicite:22]{index=22}

• AmScope, SM-3 Series Zoom Trinocular Stereo Microscope. :contentReference[oaicite:23]{index=23}

• World Precision Instruments / NBT, PZMV Stereo Zoom Microscope. :contentReference[oaicite:24]{index=24}

• Peer-reviewed review: Comprehensive review of surgical microscopes: technology development and medical applications. :contentReference[oaicite:25]{index=25}
