When I talk with customers about a biological Microscope, I often find that they first ask about magnification. That makes sense. A microscope is supposed to make small things look bigger. But after years of working with optical instruments, I have learned that magnification is only one part of the story.

For daily biological observation, what the user can actually see through the eyepiece is just as important. A microscope should give a useful field of view, a clear image, practical focusing control, and comfortable observation. If the image is technically large but only a small part of the specimen can be seen, the higher magnification does not always make the work easier.

That is one of the reasons we pay attention to the optical configuration of our Wide Field Plan-scope Eyepiece Biological Microscope. The product is designed for users who need a practical biological microscope for observing cells, tissues, microorganisms, prepared slides, and other biological specimens.

At Ningbo Huaguang Precision Instrument Co., Ltd., we manufacture educational microscopes, Industrial Inspection microscopes, professional Jewelry Inspection microscopes, optical components, and precision injection-molded products. This experience has taught us something quite simple: a good optical instrument is not defined by one impressive specification. The optical components, mechanical structure, illumination, focusing system, assembly, and final inspection all need to work together.

Our biological microscopes are intended for schools, universities, teaching laboratories, research environments, medical laboratories, and routine specimen inspection. Depending on the final configuration, they can be supplied for different observation requirements and purchasing situations.

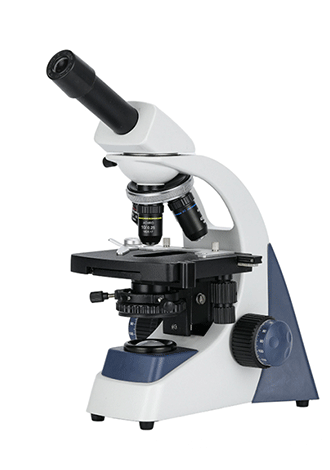

1. What Is a Wide Field Plan-scope Eyepiece Biological Microscope?

The name of this microscope contains several useful clues.

Biological microscope means that the instrument is designed mainly for observing biological specimens. These can include prepared tissue sections, plant cells, animal cells, microorganisms, blood smears, and other samples suitable for transmitted-light optical observation.

Wide field eyepiece refers to an eyepiece designed to provide a larger visible field compared with a narrower-field configuration. In practical terms, a wider field can allow the user to see more of the specimen at one time. Nikon explains that the field of view in the specimen plane is related to the eyepiece field number and objective magnification, with the basic relationship expressed as field of view = field number divided by objective magnification. [Source: Nikon MicroscopyU]

Plan-scope in the product name indicates the plan or flat-field concept associated with the optical system. In microscopy, plan objectives are designed to provide better image flatness across the field compared with simpler objective designs. The benefit becomes particularly noticeable when the user needs to examine structures toward different areas of the visible field.

This is important because a biological specimen is rarely just one tiny point in the center of the image. When students observe a prepared slide, they often move from one area to another. A useful microscope should make that process straightforward.

I therefore look at a wide-field biological microscope from a practical perspective. The question is not simply, “How much can it magnify?” The better question is, “How much useful information can the user see and understand at the selected magnification?”

The exact optical design and specification depend on the selected microscope configuration. We recommend confirming the required objective, eyepiece field number, magnification, illumination, and accessories before ordering.

2. Why Does a Wide Field Eyepiece Matter in Biological Observation?

Let me put this in everyday language.

Imagine that you are looking at a large map through a small window. You can enlarge the map, but if the window stays small, you still cannot see much of the map at one time. A wider viewing field is a little like making that window larger.

With a biological microscope, the field of view describes the area of the specimen that can be seen through the microscope at a given magnification. When the objective magnification increases, the visible field generally becomes smaller if the eyepiece field remains unchanged. Nikon provides the field-of-view relationship as field number divided by objective magnification. [Source: Nikon MicroscopyU]

This has a very practical effect during biological observation.

At lower magnification, a student may want to find the specimen quickly. A wider field can make it easier to locate the area of interest. After the specimen is located, the user can move to a higher-power objective to examine a smaller structure in more detail.

That workflow is common in microscopy: locate first, inspect second.

A wide-field eyepiece can therefore be useful in teaching laboratories where students are learning how to move around a slide. Instead of constantly feeling as though they are looking through a tiny tunnel, they can obtain a broader view of the specimen when the selected optical configuration allows it.

However, I would not recommend judging an eyepiece by field width alone. A wider field needs to be supported by suitable optical correction. If the outer area of the field becomes noticeably distorted, blurred, or uneven, the extra field does not provide much practical value.

This is why the relationship between the eyepiece and objective is important. ZEISS explains that the eyepiece field of view and objective magnification determine the imaged visual object field, while the optical design of the objective also affects how well the field can be used. [Source: ZEISS Microscopy]

For our customers, this means that choosing a wide-field biological microscope should involve more than asking for the largest possible field number. The complete optical system needs to be considered.

3. How Does the Plan Optical Concept Improve Everyday Viewing?

The word “plan” can sound technical, but the basic idea is not difficult.

In a simple microscope objective, the center of the image may look sharp while the outer areas become less sharp. A plan objective is designed to provide better flatness of field, helping the image remain more consistently focused across the viewing area.

This matters when the specimen contains useful information in different parts of the field.

For example, imagine a prepared biological slide containing several tissue structures. If the center is sharp but the edges become noticeably soft, the user may need to keep moving the slide and refocusing to inspect different regions. A well-designed plan optical system can make field-wide observation more convenient.

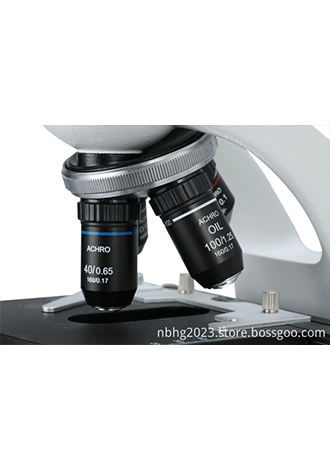

Plan objectives are not automatically the same as high-magnification objectives, and “plan” does not by itself describe the complete performance of a microscope. Objective magnification, numerical aperture, optical correction, working distance, illumination, and specimen preparation all remain important.

ZEISS explains that microscope objectives have multiple specifications, including magnification, numerical aperture, immersion medium, and optical correction. These specifications need to be considered together when selecting an objective. [Source: ZEISS Microscopy]

These values are optical design concepts rather than fixed specifications of every configuration we manufacture. The actual parameters depend on the selected objective and microscope model.

4. Magnification, Resolution, and Field of View: How They Work Together

This is probably the section I would spend the most time on when helping a new microscope buyer.

Many buyers naturally think that a 1000x microscope must be better than a 400x microscope. That is not necessarily true. If the optical system cannot resolve additional detail, increasing magnification may simply make the same information look larger.

Numerical aperture, usually written as NA, is one of the key factors in microscope resolution. ZEISS explains that numerical aperture affects both light-gathering ability and image resolution, and that higher NA can allow finer specimen detail to be resolved. [Source: ZEISS Microscopy]

A simple example makes this easier to understand.

Suppose a microscope uses a 10x eyepiece and a 40x objective. The nominal total magnification is 400x. If the same eyepiece is used with a 100x objective, the nominal total magnification becomes 1000x.

But the 1000x image is not automatically twice as informative as the 500x or 400x image. The objective's numerical aperture, optical correction, illumination, specimen preparation, and other factors determine whether additional detail can actually be resolved.

ZEISS notes that magnification beyond the useful range can become empty magnification, where the image becomes larger without revealing additional fine detail. [Source: ZEISS Microscopy]

These are calculation examples, not fixed specifications for the Wide Field Plan-scope Eyepiece Biological Microscope. The actual microscope configuration should be selected according to the specimen and application.

The field of view changes at the same time. As objective magnification rises, the visible specimen area becomes smaller. This is why I recommend starting with a lower-power objective, locating the specimen, and then moving upward in magnification.

It is a small habit, but it saves a surprising amount of time.

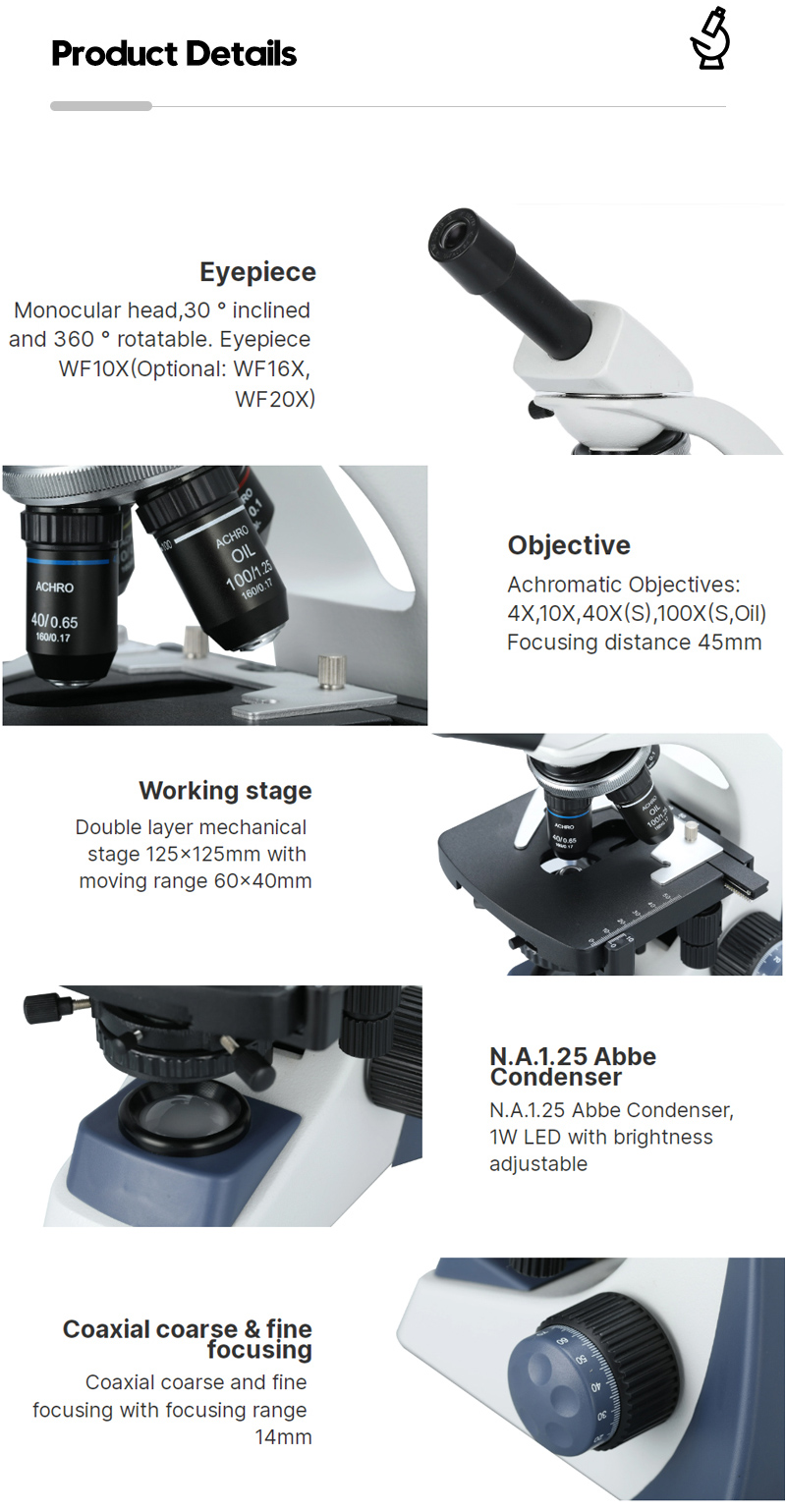

5. Main Features of Our Wide Field Plan-scope Eyepiece Biological Microscope

When we develop or supply a biological microscope, I prefer to describe the product through actual user needs rather than simply listing a long string of specifications.

Wide Field Observation

The wide-field eyepiece configuration is intended to provide a broader observation area. This can be especially useful when students are locating specimen structures or when users need to scan a larger portion of a slide.

Plan Optical Design

The plan optical concept is intended to support more even image focus across the field. This is useful when the observer needs to inspect structures away from the center of the image.

Clear Biological Imaging

The microscope is designed for observing cells, tissues, microorganisms, and prepared biological specimens. Optical components must work together correctly to produce a useful image.

Practical Focusing

Focusing is one of the controls a student touches most often. We therefore pay attention to focusing operation during assembly and inspection. The goal is simple: the user should be able to move from a rough image to a sharp image without unnecessary difficulty.

Comfortable Observation

A biological microscope may be used for an entire laboratory class or for repeated daily observation. Comfortable viewing therefore matters. The binocular configuration, viewing position, eyepiece design, and mechanical stability all contribute to the overall experience.

Flexible Configuration

Different customers have different requirements. A school may need a straightforward educational configuration, while a laboratory may require a different objective combination or accessories. For customized orders, we discuss the application and configuration before production.

Suitable for Repeated Use

Educational equipment is often shared by many users. Students adjust the stage, change objectives, operate the focus controls, and move the equipment between storage and working positions. A practical mechanical structure is therefore just as important as optical performance.

6. Applications: Where Can This Biological Microscope Be Used?

The Wide Field Plan-scope Eyepiece Biological Microscope can be considered for a range of educational and laboratory applications.

Biology Teaching

For school and university biology classes, students need to connect what they read in textbooks with what they can actually see. A biological microscope makes that connection much more direct.

Students can observe prepared cells, plant tissues, animal tissues, microorganisms, and other biological samples. A wide viewing field can also make it easier for beginners to find the correct area of a slide.

University Laboratories

University biology and life-science courses may require students to work with prepared specimens at different magnifications. A microscope with a practical optical configuration can support routine laboratory exercises without making the equipment unnecessarily difficult to operate.

Research Laboratories

Biological research covers a very wide range of applications. Some projects need basic brightfield observation, while others require fluorescence, phase contrast, digital imaging, or highly specialized objectives.

Our biological microscope can be considered for routine observation where its optical configuration matches the application. For specialized research work, we recommend confirming the exact specimen type and imaging method before selecting the microscope.

Medical Laboratory Environments

Optical microscopes are used in many laboratory environments for prepared specimen observation. However, the exact suitability for medical diagnostic use depends on the applicable regulations, validation requirements, microscope configuration, and intended purpose. Buyers should confirm these requirements before placing an order.

Routine Specimen Inspection

Some customers simply need a dependable microscope for regular specimen inspection. In this situation, practical operation and consistent optical performance can be more important than having every possible advanced function.

Educational Equipment Distribution

We also work with customers who purchase microscopes for distribution. For these buyers, product consistency, export packaging, documentation, configuration control, and communication during production are important parts of the purchasing decision.

7. How We Manufacture and Inspect Our Biological Microscopes

At Ningbo Huaguang Precision Instrument Co., Ltd., we understand that optical instruments need careful assembly. A microscope may contain excellent optical components, but if the assembly is not handled properly, the final product may not deliver the expected experience.

Our manufacturing work includes educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding. This combination gives us experience with both precision optical products and mechanical components.

Optical Component Preparation

Optical components need careful handling. Dust, fingerprints, incorrect installation, or poor alignment can affect the final image. During assembly, we pay attention to the condition and cleanliness of the optical parts.

Mechanical Assembly

The microscope body, stage, focusing mechanism, binocular head, objective mounting system, illumination components, and other parts are assembled according to the selected configuration.

The mechanical side should not be treated as an afterthought. If the stage movement is unstable or focusing does not feel right, the user will notice it immediately.

Optical Performance Checking

After assembly, optical performance needs to be checked. We look at image quality and overall observation performance according to the product configuration.

For a wide-field microscope, field-wide image performance is particularly relevant. The purpose is not simply to confirm that an image appears through the eyepiece. The observation should be useful across the intended field.

Focusing and Mechanical Function Testing

We check focusing and mechanical functions before shipment. The user should be able to operate the microscope in a practical way after receiving it.

Appearance Inspection

Visible surfaces and assembly details are inspected before packing. This is the final stage of making sure the delivered product matches the agreed configuration and expected appearance.

Our company has obtained ISO9001 quality management system certification, and our products have been certified to CE and RoHS requirements. We see these certifications as part of a broader quality process rather than as a substitute for careful manufacturing and inspection.

8. Ordering, Customization, Packaging, and International Delivery

For an overseas microscope order, the product itself is only part of the process.

We first need to understand the customer's application. Is the microscope for a school? A university? A laboratory equipment distributor? A research facility? Is it being purchased for routine biological observation or for a more specialized application?

Once the application is clear, we can discuss the optical configuration, objective requirements, eyepiece requirements, accessories, quantity, packaging, and documentation.

For customized orders, the production cycle generally depends on the model, order quantity, configuration, and component availability. Standard configurations are usually easier to arrange than highly customized products.

Before shipment, we can carry out assembly inspection, optical performance checking, focusing and mechanical function testing, and appearance inspection according to the agreed product requirements.

Packaging is also important. A microscope contains optical components and mechanical structures that should be protected during transportation. We normally use inner cushioning and dust-proof protection, followed by individual boxes and reinforced export cartons or other suitable outer packaging.

For transportation, customers can choose sea freight, air freight, express delivery, or another suitable method according to destination, order size, delivery schedule, and logistics requirements.

Payment terms are confirmed according to the order agreement. A common arrangement may include a deposit with the balance paid before shipment, but the exact terms should be confirmed during quotation and order negotiation.

For international customers, we also recommend confirming documentation requirements before production. This may include user manuals, product configuration details, applicable certificates, inspection documents, and packaging information.

9. Why Choose Ningbo Huaguang Precision Instrument Co., Ltd.?

I believe customers should have enough practical information to understand who they are buying from, especially when purchasing optical equipment internationally.

Ningbo Huaguang Precision Instrument Co., Ltd. is located in Haishu District, Ningbo. Our main business includes educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.

Our products have been exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. International customers have different expectations regarding product specifications, communication, packaging, documentation, and transportation, so we pay attention to the complete order process.

Our ISO9001 quality management system certification provides a structured approach to quality management. Our products also include CE and RoHS certified products.

We have also developed various series of nanometer photocatalytic air purifiers and air-conditioning purification equipment. Although these products are different from biological microscopes, they reflect our wider experience in precision equipment development and manufacturing.

Our company credo is “Nothing is perfect only better and better.”

I like this sentence because it describes a practical attitude toward manufacturing. A product can always be improved. Sometimes the improvement is a new optical configuration. Sometimes it is better assembly. Sometimes it is clearer packaging or better communication with customers.

For buyers looking for a Wide Field Biological Microscope, plan-scope eyepiece biological microscope, biological microscope with wide field eyepiece, or wide field microscope for laboratory education, we focus on matching the product configuration with the actual application rather than simply recommending the most complicated option.

10. How to Select the Right Wide Field Biological Microscope

Before buying a microscope, I recommend starting with the specimen instead of the specification sheet.

First, identify the specimen. Are you observing plant cells, animal tissues, microorganisms, prepared slides, or another type of biological sample?

Second, decide the observation range. If users frequently need to locate structures across a larger slide area, field of view becomes particularly important.

Third, consider the objective. Magnification, numerical aperture, optical correction, working distance, and immersion requirements should be considered together.

Fourth, think about user comfort. If students or laboratory staff will use the microscope for long periods, binocular viewing and practical ergonomics deserve attention.

Fifth, check the application environment. A school classroom and a specialist research laboratory do not necessarily need the same microscope.

Sixth, confirm accessories and documentation. If you need specific objectives, eyepieces, filters, imaging accessories, certificates, or packaging requirements, these should be discussed before production.

Finally, consider the complete supply process. For an international order, production time, inspection, packaging, transportation, payment terms, and after-sales communication all matter.

This approach usually gives a much clearer result than choosing a microscope based on magnification alone.

11. Frequently Asked Questions

What is a Wide Field Plan-scope Eyepiece Biological Microscope?

It is a biological microscope designed with a wide-field eyepiece configuration and plan-type optical characteristics intended to provide practical observation of biological specimens. It can be used for cells, tissues, microorganisms, prepared slides, and other suitable samples.

What does wide field mean in a microscope?

Wide field generally refers to an eyepiece or optical system that provides a larger visible field. The actual field of view depends on factors including the eyepiece field number and objective magnification. Nikon explains that the specimen-plane field of view can be calculated from the field number divided by objective magnification. [Source: Nikon MicroscopyU]

What does plan mean in a biological microscope?

Plan refers to an optical design intended to improve field flatness, helping maintain more consistent focus across the visible field. The exact optical correction depends on the objective design.

Is a wide field eyepiece useful for students?

It can be very useful. A wider viewing area can make it easier for students to locate a specimen and observe a larger part of a slide. This can make the basic learning process more intuitive.

Does a wide field mean higher magnification?

No. Field of view and magnification are different concepts. A wider field allows the observer to see more of the specimen area, while magnification determines how large the specimen appears. Objective magnification also affects the actual field of view.

Does a plan objective provide better resolution?

Plan correction mainly relates to field flatness rather than directly determining resolution. Resolution is strongly affected by the objective's numerical aperture, wavelength, optical design, and other factors. ZEISS explains the relationship between numerical aperture and image resolution in its microscopy reference materials. [Source: ZEISS Microscopy]

Can this microscope be used for microorganisms?

Yes, suitable biological specimens and microorganisms can be observed when the microscope configuration and specimen preparation are appropriate. The required magnification, numerical aperture, illumination, and contrast method depend on the particular microorganism and observation task.

Can this microscope be used in schools and universities?

Yes. The microscope is suitable for educational environments where users need to observe cells, tissues, microorganisms, and prepared biological specimens. The exact configuration can be selected according to the teaching requirements.

Can the microscope be customized?

Customized configurations can be discussed according to the model, order quantity, optical requirements, accessories, packaging, and other customer requirements. The production cycle depends on the final configuration and component availability.

How do you check the microscope before shipment?

Before shipment, microscopes can undergo assembly inspection, optical performance checking, focusing and mechanical function testing, and appearance inspection. Additional inspection requirements can be discussed for specific orders.

How do you package the biological microscope?

We normally protect the microscope with inner cushioning and dust-proof materials, place it in an individual box, and then use reinforced export cartons or other suitable outer packaging. Packaging can be adjusted according to the product and transportation requirements.

How can I request a quotation?

When requesting a quotation, please provide the intended application, specimen type, required magnification, eyepiece requirements, objective requirements, quantity, destination, accessories, packaging requirements, and certification needs if applicable. This information helps us prepare a more suitable configuration and quotation.

12. Final Thoughts on the Wide Field Plan-scope Eyepiece Biological Microscope

A biological microscope should make observation easier, not make the user fight with the equipment.

For me, the value of the Wide Field Plan-scope Eyepiece Biological Microscope comes from the way several practical elements work together. The wide-field eyepiece can provide a broader view, the plan optical concept can support more consistent field-wide observation, and the biological microscope configuration provides a practical platform for cells, tissues, microorganisms, and prepared specimens.

At the same time, no single optical feature can replace a complete microscope system. The objective, eyepiece, illumination, condenser, focusing mechanism, mechanical structure, specimen preparation, and user technique all influence the final observation.

That is why we focus on the complete product rather than one number on the specification sheet.

At Ningbo Huaguang Precision Instrument Co., Ltd., we continue to improve our microscope products through optical design, manufacturing experience, assembly inspection, product testing, and communication with customers in different markets.

If you are looking for a Wide Field Plan-scope Eyepiece Biological Microscope for school education, university teaching, laboratory observation, biological research, routine specimen inspection, or distribution, we welcome you to provide your application and required configuration.

Once we understand what you actually need to observe, how often the microscope will be used, and what optical configuration is required, we can discuss the appropriate product arrangement, production schedule, packaging, and delivery method.

For us, continuous improvement is not just a phrase. It is part of how we approach optical instrument manufacturing: make the product practical, check the details carefully, listen to customers, and keep improving the next product.
