CMOS Tablet Compound Camera Microscope LCD Display for Digital Microscopy
When I look at a modern microscope system, I do not only think about magnification. I also think about how easily the user can see the sample, share the image, record useful information, and complete daily inspection work. This is where a CMOS Tablet Compound Camera Microscope LCD Display becomes useful.
A traditional compound microscope is mainly designed for direct observation through eyepieces. A Digital Microscope system adds another practical way to view the sample: the microscope image can be converted into a digital image and displayed on a screen. With a CMOS camera, tablet-style viewing, and LCD display working as part of the observation system, the user can move from individual eyepiece observation toward a more convenient digital workflow.
In my experience, this type of microscope is particularly useful when observation needs to be shared. A teacher may want an entire class to see the same sample. A laboratory worker may need to show an image to a colleague. An inspection operator may need to review a small detail on a larger display instead of looking through an eyepiece for a long time. These are simple needs, but they can make a big difference in daily work.
The product name CMOS Tablet Compound Camera Microscope LCD Display describes the main idea clearly: a compound microscope is combined with digital camera imaging and screen-based viewing. The exact configuration can vary according to the microscope system, camera, display, mounting method, and intended application, so I always recommend confirming the complete configuration before placing an order.
A CMOS Tablet Compound Camera Microscope LCD Display is a digital observation solution built around a compound microscope and a CMOS imaging camera. Instead of relying only on direct viewing through the eyepieces, the camera receives the microscope image and converts it into digital information that can be shown on an LCD display or compatible viewing device.
The CMOS sensor is an important part of the digital camera. CMOS is a common image-sensor technology used in many digital imaging products. In a microscope camera, the sensor receives light coming through the microscope optical path and converts that light into an electronic image.
The LCD display then gives the operator a direct visual reference. This is especially helpful when several people need to observe the same sample. Instead of asking each person to take turns looking through the eyepiece, the image can be presented on a screen for group viewing.
Digital microscope systems with LCD displays are already used in education, inspection, laboratories, and documentation. Commercial microscope camera systems are available with built-in displays, while other systems use external monitors or tablets. The actual screen size, camera resolution, connection method, storage function, and software support vary by product configuration.
| Observation Method | Basic Viewing Method | Typical Advantage | Typical Consideration |
|---|---|---|---|
| Traditional Compound Microscope | Eyepiece observation | Direct optical viewing | Usually designed around individual observation |
| Digital Compound Microscope | Camera and digital display | Image sharing and digital documentation | Camera and display compatibility need to be considered |
| CMOS Tablet Compound Camera Microscope LCD Display | Microscope + CMOS camera + screen-based viewing | Convenient digital observation and group viewing | Exact functions depend on the selected configuration |
Source: The comparison reflects general digital microscopy configurations described by microscope equipment suppliers, including systems using USB, HDMI, Wi-Fi, tablet, and built-in LCD display solutions.
I do not treat the display as a replacement for the microscope optics. The camera and screen are only part of the complete imaging chain. Optical quality, illumination, focusing, sample preparation, camera performance, and display characteristics all affect the final image that the user sees.
The working process is easier to understand than it may sound. First, the compound microscope uses its optical system to enlarge the sample image. Light from the sample passes through the microscope and forms an image in the camera path. The CMOS sensor inside the camera receives that image.
The CMOS sensor converts the light information into electronic data. The camera system processes this information and sends the resulting image to the selected display or digital device. The operator can then observe the sample on the LCD display.
In a typical digital microscope workflow, there are several basic stages:
The sample is positioned on the microscope stage.
The microscope optical system forms a magnified image.
The CMOS camera receives the image.
The camera converts the optical image into digital information.
The processed image is sent to the display or compatible device.
The operator observes, discusses, records, or documents the result.
This process is useful because it separates observation from the physical eyepiece. The operator can work with the screen while other people can see the same image.
Digital compound microscope systems commonly use digital cameras to send microscope images to computers, external monitors, or integrated displays. Some systems also provide image capture, video recording, measurement, or other digital functions, although these functions are not universal and should always be confirmed for the specific model.
One point I always emphasize is that a digital display does not automatically mean better optical performance. If the microscope is not correctly focused, the illumination is uneven, or the sample is poorly prepared, increasing the digital image size will not create missing detail. Good observation starts with the complete optical and mechanical system.
The CMOS camera is the bridge between the optical microscope and the digital display. It allows the microscope image to become a digital image that can be viewed on a screen. CMOS camera technology is widely used in digital microscopy, and commercial microscope cameras are available with different resolutions, frame rates, connection methods, and software functions.
For buyers, I recommend looking beyond the word “CMOS”. The sensor type alone does not tell the whole story. The final image is influenced by the optical system, sensor characteristics, illumination, image processing, focus, and sample itself.

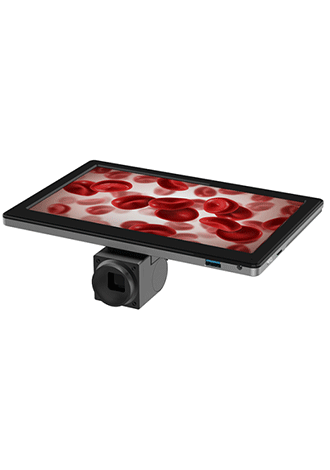

The tablet aspect of the product name points to a more convenient screen-based observation experience. A tablet-style display can make the microscope image easier to share with students, colleagues, inspectors, or visitors.
In education, this can make classroom demonstrations much easier. In a laboratory, it can help multiple people discuss the same sample. In Industrial Inspection, it can make it easier to show a small feature without requiring every person to use the eyepiece.

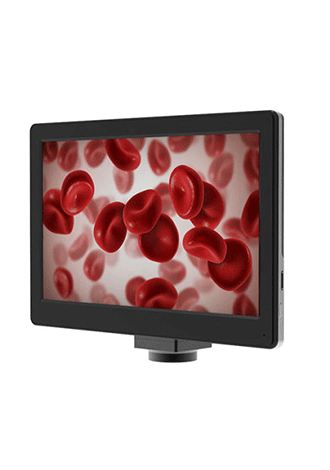

An LCD display provides a direct visual interface for digital microscope observation. Built-in LCD microscope cameras are available commercially, and some products combine the camera and screen into a single unit. Other systems use a separate display or external device.
Because display size and image output vary between systems, I recommend selecting the display according to the viewing distance, number of users, working environment, and documentation requirements rather than choosing only by screen size.
A compound microscope is generally used when the user needs magnified observation of small specimens. It differs from a Stereo Microscope in both optical design and typical application. Digital compound microscope systems are commonly used for biological samples, education, laboratories, and research-related observation.
The actual suitable magnification range depends on the complete microscope configuration. For this reason, I do not recommend selecting a system based only on the highest magnification number printed in a specification sheet.
This is one of the most practical benefits. When the image is presented on an LCD display, several people can look at the same image at the same time. It can make training and discussion much more natural.
For example, an instructor can place a prepared sample under the microscope and explain what the students are seeing. An inspection supervisor can review a detail together with an operator. A laboratory team can discuss an image before deciding what needs to be recorded.
When I evaluate a digital microscope system, I prefer to think about the complete workflow rather than one isolated specification. A camera with a high pixel count may sound attractive, but that number only describes one part of the imaging system.
| Factor | What It Affects | Why It Matters |
|---|---|---|
| Sensor Type | Digital image acquisition | Determines how optical information is converted into digital data |
| Image Resolution | Visible image detail | Important when users need to inspect or document small features |
| Frame Rate | Smoothness of live video | Useful when observing movement or making real-time demonstrations |
| Optical System | Magnification and image formation | Provides the original microscope image received by the camera |
| Illumination | Brightness and contrast | Strongly affects how clearly sample details can be seen |
| Display | Viewing experience | Determines how the digital image is presented to the operator |
| Connection | Data or video transfer | Needs to match the display and intended workflow |
Source: General microscope-camera selection guidance identifies resolution, frame rate, sensor type, and output connections as important factors when selecting a digital microscope camera.
For live observation, frame rate can also matter. A higher frame rate can make moving images appear smoother, while resolution determines how much image detail can be represented. These two factors solve different problems and should not be treated as interchangeable.
Connection is another practical point. Different microscope camera systems may use USB, HDMI, Wi-Fi, or other output methods. Some systems can send images to computers, tablets, or external displays, while some integrated systems are designed to operate directly from the microscope.
Compatibility is equally important. A camera that works with one microscope configuration may not automatically fit another. Mounting standards, optical adapters, camera position, image field, and output requirements all need to be checked before ordering.
Education is one of the clearest applications. Students often understand a science lesson better when they can see the actual sample instead of only looking at a printed picture.
A tablet microscope camera or LCD microscope display can help teachers demonstrate samples to a whole classroom. The teacher can explain the image while students watch the same screen. This makes the microscope less of a one-person instrument and more of a shared learning tool.
Schools, laboratories, training centers, science classrooms, and educational programs can all benefit from this type of digital observation workflow.
In laboratories, digital viewing can support routine observation and image documentation. The exact application depends on the microscope configuration and sample type.
For example, users may need to inspect prepared samples, compare different samples, discuss visible structures, or save images for later reference. The camera and display make these tasks easier to organize when digital observation is preferred.
Electronics manufacturing often requires careful observation of small components and fine details. A microscope can provide the magnification needed for close inspection, while digital imaging can make the observation easier to share with another operator or quality-control employee.
The suitability of the exact microscope configuration depends on the inspection target, sample size, required magnification, lighting, and working method. I always recommend confirming these points before selecting a final configuration.
Optical components and precision mechanical parts may contain small surface features that are difficult to inspect with the naked eye. A compound microscope and digital camera can support detailed observation where the sample and optical configuration are appropriate.
Jewelry Inspection usually has its own requirements, and a stereo Jewelry Microscope is often more appropriate for three-dimensional opaque objects. However, a compound microscope can be useful for specific small-sample applications where its optical design matches the observation task.
This distinction is important. I do not recommend treating every microscope as a universal solution. Choosing the right microscope starts with understanding the sample.
Quality control teams often need consistent observation and communication. A digital microscope can make it easier to show a defect, surface feature, or sample condition to another person.
The display is especially useful when inspection involves more than one person. Instead of passing the microscope around or repeatedly asking another operator to look through the eyepiece, the image can be viewed on the same screen.
When a customer asks me which CMOS compound microscope camera or LCD microscope system they should choose, I start with the application rather than the product name.
First, I ask what the sample is. Is it a prepared biological specimen, a small component, an optical part, a material sample, or something else? The sample determines the type of microscope that makes sense.
Second, I ask how the sample needs to be viewed. If one person needs direct optical observation, an eyepiece-centered workflow may be enough. If several people need to see the same image, digital display becomes more valuable.
Third, I check the camera requirement. If the customer needs only live observation, the priorities may be different from a customer who needs image capture, measurement, recording, or documentation.
Fourth, I check compatibility. This is a step that should not be skipped. The camera mounting method, optical path, adapter, display connection, and microscope configuration should be confirmed before purchase.
Fifth, I consider the working environment. A classroom, laboratory, jewelry workshop, and industrial inspection line do not have the same needs. The system should be practical for the actual operator, not just attractive on a specification sheet.
| Customer Requirement | Important Selection Point | Questions I Would Confirm |
|---|---|---|
| Classroom teaching | Shared display and easy operation | How many students need to view the image? |
| Laboratory observation | Optical quality and digital documentation | Does the user need image capture or recording? |
| Industrial inspection | Stable observation and workflow compatibility | What sample and inspection task are involved? |
| Electronics inspection | Suitable magnification and lighting | What size and type of component will be inspected? |
| Research application | Imaging flexibility and data workflow | Are software, measurement, or data export required? |
Source: These selection principles are consistent with common digital microscope camera guidance, which recommends considering resolution, frame rate, sensor type, output connection, microscope compatibility, and intended application.
I also recommend asking whether the customer really needs a built-in display. A built-in LCD can be convenient and simple. A computer-based system may provide more room for advanced image analysis. A tablet-based system can be useful when portability and sharing are more important. There is no single configuration that fits every user.
As a manufacturer and supplier of microscope-related products, I pay attention to more than the final appearance. A microscope accessory or digital microscope component has to work as part of a larger system.

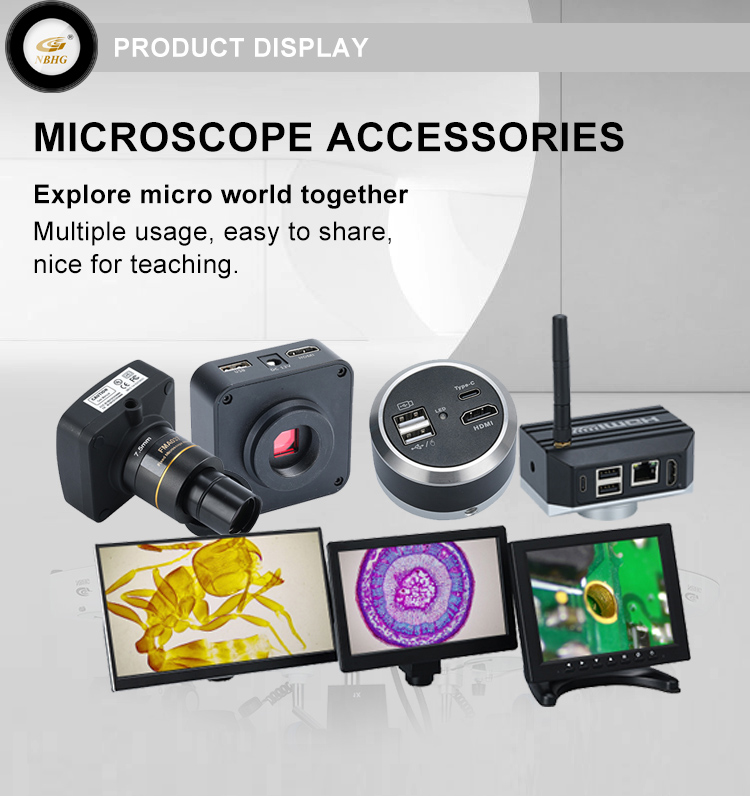

Our production approach starts with the confirmed product requirements. For Microscope Accessories and related components, the production time depends on the accessory type, configuration, order quantity, and component availability. Standard products generally have a shorter production cycle, while customized products may require additional confirmation and production time.
During production and assembly, attention is given to component condition, assembly requirements, product appearance, and the confirmed configuration. For digital microscope products, the complete system should be considered rather than treating the camera, display, and optical system as unrelated parts.
Before delivery, we check the product appearance, quantity, configuration, and required functions according to the order requirements. This final check is important because a microscope system can contain several components, and the customer needs the delivered configuration to match the confirmed order.
Packaging is also part of the delivery process. Microscope accessories and related components are protected with cushioning and dust-proof materials. Suitable inner boxes and reinforced export cartons are then used according to the product and shipment requirements. The purpose is straightforward: reduce the risk of damage during handling and transportation.
For international orders, we can arrange express delivery, air freight, sea freight, or other suitable logistics methods according to the order size and destination. Payment terms are arranged according to the sales agreement, commonly with a deposit and the balance before shipment.
Ningbo Huaguang Precision Instrument Co., Ltd. is located in Haishu District, Ningbo, an area with convenient transportation and a pleasant environment. Our business focuses on educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.
We have experience serving customers in different markets, and our products have been exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. Working with customers from different markets has taught us an important lesson: microscope requirements can be quite different from one application to another.
That is why I prefer to understand the customer's application before suggesting a product configuration. A customer looking for a CMOS Tablet Compound Camera Microscope LCD Display may need a solution for classroom teaching, laboratory observation, industrial inspection, or another application. The same product name can therefore involve different practical requirements.
Our company has obtained ISO9001 Quality Management System certification. Our products are also described by the company as having CE and RoHS certification. These quality and compliance requirements form part of our approach to product development and production.
We have also developed various series of nanometer photocatalytic air purifiers and air-conditioning purification equipment. This reflects our broader involvement in precision product development and manufacturing.
Our working philosophy is simple: “Nothing is perfect only better and better.” I see this not as a slogan for the wall, but as a practical way to approach product improvement. A microscope system can always be made easier to use, more stable, more suitable for a specific application, or better matched to the customer's workflow.
It is a digital microscope configuration that combines a compound microscope with a CMOS camera and LCD-based viewing. The camera converts the microscope image into digital information that can be displayed on a screen. Exact functions depend on the selected configuration.
CMOS refers to the image-sensor technology used to convert light into electronic image information. In a microscope camera, the CMOS sensor receives the image produced by the microscope optical system and converts it into a digital signal for processing and display.
Yes, digital microscope cameras with tablet or LCD viewing can be useful in education because several people can view the same microscope image. This can make classroom demonstrations and group discussions easier. The exact suitability depends on the microscope and display configuration.
They serve different purposes. An eyepiece provides direct optical observation, while an LCD display provides shared digital viewing. For one-person observation, an eyepiece may be very convenient. For teaching, discussion, or group inspection, a display can provide practical advantages.
That depends on the specific camera configuration. Some digital microscope cameras support image capture and video recording, while others focus mainly on live display. Commercial digital microscope systems are available with different capture, storage, software, and output functions, so these details should be confirmed before ordering.
Some microscope cameras support computer connection through interfaces such as USB, while other configurations may use HDMI, Wi-Fi, or another output method. Compatibility depends on the exact camera model and microscope system. I recommend confirming the required connection before purchase.
No. Camera compatibility should be checked carefully. The mounting method, adapter, optical path, camera position, field of view, and output requirements can all affect compatibility. Some commercial microscope cameras require a suitable C-mount adapter or another microscope-specific adapter.
It can be suitable for certain industrial inspection tasks, especially when the sample and optical configuration match the application. However, industrial inspection requirements vary widely. Electronics, optical components, precision parts, and biological samples can require different microscope designs, lighting methods, and magnification ranges.
I recommend providing the application, sample type, required observation method, preferred display method, expected camera functions, microscope model if you already have one, required connection type, order quantity, and destination. If you already have a microscope, photos of the camera port or existing configuration can also help us understand compatibility requirements.
Production time depends on the product configuration, order quantity, component availability, and whether customization is required. Standard products normally have a shorter production cycle, while customized products may require additional time for technical confirmation and production.
We use cushioning and dust-proof protection for microscope accessories and related components, followed by suitable inner boxes and reinforced export cartons. The exact packaging method depends on the product structure and shipping requirements.
A CMOS Tablet Compound Camera Microscope LCD Display is more than a microscope with a screen. It is a way to make microscope observation easier to share, discuss, record, and use in a modern digital workflow.
The combination of a compound microscope, CMOS imaging, and LCD display can be useful in education, laboratories, electronics inspection, precision manufacturing, optical component inspection, and other applications where detailed observation matters. At the same time, I believe the right product should always be selected according to the actual sample and working process rather than a product name or one attractive specification.
At Ningbo Huaguang Precision Instrument Co., Ltd., we focus on practical microscope products, optical components, and precision manufacturing. We understand that different customers have different observation requirements, which is why configuration, compatibility, quality inspection, packaging, and after-sales service all matter.
If you are sourcing a CMOS Tablet Compound Camera Microscope LCD Display for a laboratory, school, inspection department, distributor, or other professional application, the most useful starting point is to define what you need to observe and how you want to use the image. From there, the microscope, camera, display, and supporting accessories can be matched to the real job.
