When I look at a Microscope for soldering work, I do not judge it by the magnification number alone. A useful soldering microscope must provide a clear image, enough working space, stable focusing, comfortable viewing, and a practical way to record or display inspection results. These details matter every day, especially when an operator spends hours checking circuit boards, solder joints, connectors, and small electronic components.

Our 0.7X-5.0X Trinocular Zoom Stereo Mcroscopes for Soldering are designed for this kind of work. The product combines a stereo optical system, a zoom range from 0.7X to 5.0X, and a trinocular viewing head. The binocular eyepieces support natural three-dimensional observation, while the third optical port can be used with a suitable camera for image capture, display, training, or inspection records.

At Ningbo Huaguang Precision Instrument Co., Ltd., we develop and manufacture microscopes for education, Industrial Inspection, Jewelry Inspection, and other precision observation tasks. We also work with optical components and precision injection molding. Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan.

We know that soldering work is not always done under perfect conditions. The board may be dark, the solder may reflect light, the components may be close together, and the operator may need both hands for tools. This is why we focus on practical optical performance and a working arrangement that makes inspection easier, not simply on a high magnification figure.

1. A Practical Microscope for Soldering and Electronics Inspection

Soldering is a small operation, but it often requires careful visual control. A technician may need to check whether a solder joint is complete, whether a pin is properly connected, whether excess solder is present, or whether a component has moved during assembly. Some problems are easy to see with the naked eye. Others are too small, too close together, or hidden by reflections.

A Stereo Microscope gives the operator a magnified view while preserving a natural sense of depth. This is useful because a circuit board is not simply a flat picture. Components have different heights. Pins rise from the board. Wires, connectors, switches, and housings may have curved or uneven surfaces.

Our 0.7X-5.0X Trinocular Zoom Stereo Mcroscopes for Soldering are designed to support both general inspection and closer observation. At a lower zoom setting, the operator can see a wider area of the board. At a higher zoom setting, the operator can inspect a selected solder joint, connector pin, component edge, or surface defect.

The trinocular head adds another useful function. While the operator observes through the eyepieces, a compatible camera can be connected through the third port. This allows the image to be displayed on a computer or monitor, captured for documentation, or shared during training and technical discussion.

In my experience, this type of microscope is most useful when the work involves several of the following requirements:

• Detailed inspection of PCB boards and electronic components.

• Hands-on soldering or repair under magnification.

• Flexible viewing from a wider area to a smaller detail.

• Comfortable binocular observation during repeated work.

• Optional camera connection for recording or group viewing.

• Stable focusing and a firm mechanical stand.

The exact accessories and optical configuration should be confirmed before ordering. The total magnification, field of view, working distance, camera compatibility, and illumination depend on the selected eyepieces, objective system, stand, and other components.

2. How a Trinocular Zoom Stereo Microscope Works

Three-dimensional stereo observation

A stereo microscope uses two optical viewing paths. The left and right eyepieces receive slightly different views of the object. The user’s eyes and brain combine these views into a three-dimensional image.

This effect helps the operator understand the height and shape of Small Parts. During soldering, it can be easier to judge the position of a component lead, the shape of a solder joint, or the distance between two nearby parts. When inspecting connectors, the user can also observe whether pins are bent, raised, or incorrectly positioned.

This is one reason why a stereo microscope is often preferred for assembly and repair work. The user is not only looking at a magnified flat image. The user is working with a real object that may need to be touched, moved, repaired, or measured.

Zoom observation from 0.7X to 5.0X

The stated 0.7X-5.0X range describes the zoom objective range. The final total magnification depends on the eyepiece and any auxiliary lens used with the microscope.

A lower zoom setting normally gives a wider field of view. This is useful when locating a target on a PCB or checking the overall position of components. A higher zoom setting shows a smaller area with more detail. This is useful for inspecting solder bridges, small pins, surface marks, fine wires, and other small features.

In daily work, I recommend starting at a lower magnification and increasing it only when necessary. This makes it easier to find the target and reduces the need to move the board repeatedly. It also helps the operator maintain a clear understanding of the surrounding area.

Trinocular camera port

A trinocular microscope has two viewing eyepieces and a separate optical port for a camera. The camera port can support different tasks, depending on the selected camera adapter and camera system.

• Displaying the microscope image on a computer or monitor.

• Taking photos of solder joints or inspection findings.

• Recording videos for training or process review.

• Sharing an image with a supervisor or customer.

• Creating visual records for internal quality control.

The camera does not automatically improve the optical quality of the microscope. The result depends on the camera sensor, adapter, software, lighting, and optical alignment. We therefore recommend confirming the complete camera arrangement instead of selecting a camera only by resolution.

Working distance and field of view

Working distance is the space between the front of the objective lens and the observed sample. In soldering work, enough working distance is important because the operator may need to place a soldering iron, tweezers, probe, or small tool under the microscope.

Field of view is the visible area at a particular magnification. A wide field of view helps the operator locate components and understand the board layout. A smaller field of view is useful when checking one solder joint or a very small detail.

These two factors should be considered together with magnification. A microscope with a very high magnification but limited working space may not be convenient for active soldering. A microscope with a practical zoom range and suitable working distance may support faster and more comfortable work.

3. Main Features for Soldering Applications

Flexible zoom control

The 0.7X-5.0X zoom range gives users flexibility during inspection. The operator can begin with a broad view, locate the target, and then increase magnification for a closer check.

This is useful when a board contains many components. The user can inspect the general assembly first and then focus on a connector, solder point, IC pin, resistor, capacitor, or damaged area.

Zoom control also helps when the size of the sample changes. A small circuit board, a larger control board, and an electronic module may require different viewing conditions. A zoom system gives the operator more control than a single fixed magnification.

Binocular viewing for comfortable operation

Binocular eyepieces allow the operator to use both eyes. With correct interpupillary and diopter adjustment, the user can obtain a comfortable image that matches personal viewing needs.

This matters during long soldering sessions. When the operator has to close one eye or constantly adjust the head position, fatigue may increase. A properly adjusted Binocular Microscope provides a more natural observation experience.

Comfort also depends on the height of the stand, the position of the workbench, the chair, the sample, and the operator. We recommend setting up the complete workstation rather than looking at the microscope head alone.

Trinocular design for documentation

The trinocular head is useful for companies that need more than direct visual inspection. A camera can be connected to support image recording, remote display, training, and process discussion.

For example, a trainer may show a soldering problem on a large monitor. A quality inspector may capture an image of a damaged solder joint. A repair technician may record a before-and-after image. A production manager may use photos to discuss a recurring assembly issue.

Camera requirements vary from one application to another. Some users need a basic live image. Others need higher image detail, measurement software, video recording, or image storage. We can discuss the camera port and adapter according to the required system.

Clear optical observation

Optical clarity is important when inspecting small electronic parts. The image should help the operator distinguish edges, solder surfaces, pins, wires, and small marks.

Image quality depends on lens design, optical coating, alignment, cleanliness, illumination, and mechanical stability. A high magnification number cannot compensate for poor contrast or unstable focusing.

During product preparation, we pay attention to the matching of optical components and the assembly of the viewing system. Before delivery, we check the agreed configuration and basic optical performance.

Stable focusing

A focusing mechanism should move smoothly and hold the selected position. This is especially important when the operator works near a small solder joint or component pin.

If the microscope shakes or the focus changes unexpectedly, the operator may need to stop and repeat the inspection. A stable focusing structure helps keep the image steady while the user works with tools.

Suitable illumination

Solder joints and PCB surfaces can be reflective. Too much direct light may create glare, while too little light may hide surface details. The right illumination depends on the board color, solder finish, component shape, and inspection goal.

Different microscope configurations may use ring lights, incident illumination, transmitted illumination, or external lighting. For PCB soldering, incident light is commonly useful because the operator is inspecting the surface of a solid object. The exact lighting system should be confirmed according to the product model.

4. Technical Advantages in PCB and Soldering Work

Finding soldering defects more easily

A magnified stereo image can help the operator check common soldering problems, including:

• Incomplete solder joints.

• Excess solder.

• Possible solder bridges between nearby pins.

• Misaligned component leads.

• Lifted or bent pins.

• Surface cracks or unusual marks.

• Loose wires or connector contacts.

• Foreign particles around the soldering area.

A microscope does not replace electrical testing or other quality methods. Some defects may not be visible, and some visible marks may not indicate an electrical problem. However, visual inspection is an important part of many electronics assembly and repair processes.

More room for hand tools

During soldering, the operator may need to use tweezers, a soldering iron, a probe, or a small cutter. The microscope should provide enough space between the objective lens and the board.

Before selecting a configuration, I suggest checking the size of the board, the height of the components, the tool position, and the desired working distance. A microscope that is comfortable for inspection may need a different stand or auxiliary lens for active repair work.

Better control over the viewing area

The zoom function helps users change the viewing area without changing the sample position. This is useful when the operator needs to compare nearby solder joints or follow a row of components.

At lower magnification, the operator can understand the overall layout. At higher magnification, the operator can focus on the specific area that needs attention. This simple workflow can reduce unnecessary sample movement.

Useful for training and team communication

With a suitable camera, the trinocular microscope can display the image on a larger screen. This is useful when several people need to observe the same soldering operation.

Training staff can explain good and bad solder joints. Engineers can discuss a production problem. Quality teams can compare inspection images. Repair teams can show a small defect to a customer or supervisor.

Supports visual records

Some companies need images for internal reports, process improvement, training files, or customer communication. A camera-connected microscope can help create these records.

Before using images as formal quality evidence, the company should define its own image naming, storage, lighting, calibration, and inspection rules. A microscope image is useful only when the inspection method is consistent.

5. Comparison with Other Microscopes Used for Electronics

There is no single microscope that is perfect for every electronics task. The correct choice depends on whether the user needs direct optical viewing, screen viewing, high magnification, camera recording, or a large working area.

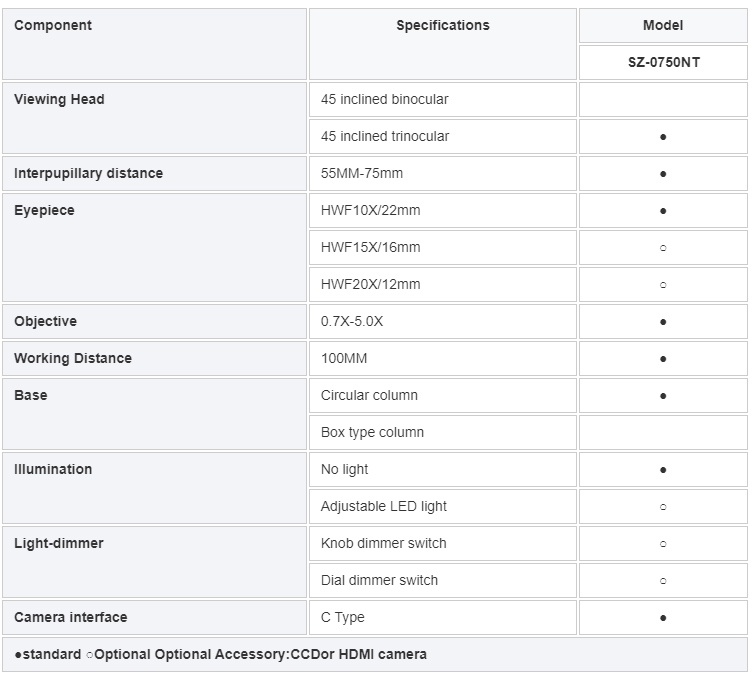

The table describes general microscope categories. Actual results depend on the optical design, accessories, illumination, camera, and operator technique.

Why I do not recommend choosing only by magnification

When buyers compare microscopes, they often focus on the highest magnification. For soldering, this can lead to an unsuitable choice.

Very high magnification reduces the visible area. The operator may lose track of the board layout and need to move the sample more often. The working distance may also become smaller, leaving less room for tools. In addition, image movement becomes more noticeable at higher magnification.

A practical soldering microscope should balance:

• Magnification range.

• Optical clarity and contrast.

• Working distance.

• Field of view.

• Focusing stability.

• Illumination quality.

• Camera compatibility.

• Operator comfort.

• Stand stability.

6. Applications in Different Industries

PCB assembly and rework

PCB assembly is one of the main applications for our trinocular zoom stereo microscope. It can be used to inspect solder joints, component leads, connectors, wires, switches, and small electronic parts.

During rework, the operator may need to remove a component, clean a solder area, place a new part, or check the final joint. The microscope helps the user see the working area clearly while keeping both hands available for tools.

Mobile phone and electronic repair

Mobile phones, tablets, cameras, and other compact electronic products contain small components and tightly arranged circuit boards. Repair technicians may need to inspect connectors, charging ports, small solder joints, wires, and damaged areas.

The zoom system supports both general board observation and closer inspection. The trinocular port can also help technicians record repair images or display the work on a monitor.

Electronic component inspection

Manufacturers and distributors may need to inspect component bodies, pins, leads, markings, solderability, and surface condition. A stereo microscope can support incoming inspection, process inspection, sampling, and final visual checking.

The inspection criteria should be defined by the company’s drawings, product standards, customer requirements, and internal quality procedures. The microscope provides the image, while the inspection decision should follow the approved criteria.

Precision machinery and small parts

The microscope is not limited to electronics. It can also be used for small mechanical components, springs, gears, connectors, precision parts, and surface details.

The stereo image is useful when the part has depth or an uneven shape. The user can observe edges, holes, grooves, and small assembly features without using a compound microscope.

Jewelry and watch inspection

Jewelry and watch components often require careful observation of small surfaces. The microscope may be used to inspect metal edges, engraving, polishing marks, stone settings, small screws, and assembly details.

The trinocular camera port can be useful for product photography, training, or showing a small detail to a customer. Lighting should be selected carefully because polished metal and stones may create reflections.

Education and technical training

A Trinocular Stereo Microscope can support technical education because the teacher can display the microscope image on a larger screen. Students can observe soldering methods, electronic parts, mechanical structures, and inspection examples.

The microscope can also help explain the difference between a good solder joint and a defective joint. It provides a practical way to connect classroom learning with real manufacturing work.

7. Manufacturing, Quality Control, and Delivery

Confirming the product configuration

At Ningbo Huaguang Precision Instrument Co., Ltd., we understand that the product title alone does not describe the complete microscope. Before production, we confirm the optical configuration, eyepieces, zoom system, trinocular port, stand, lighting, accessories, quantity, and packaging requirements.

For soldering applications, we also recommend discussing the PCB size, component height, working distance, tool space, camera requirement, and expected inspection detail. This information helps us suggest a more suitable configuration.

Optical and mechanical assembly

A stereo microscope requires both optical and mechanical accuracy. The lenses must be properly matched and aligned. The zoom movement should be smooth. The focusing structure should remain stable. The viewing head and stand should support the microscope during normal operation.

We pay attention to the relationship between these parts because the user experiences the microscope as one complete system. A clear lens is not enough if the focusing movement is unstable. A strong stand is not enough if the optical image is poor.

Inspection before shipment

Before delivery, we check the agreed product configuration and inspect the main operating functions. Depending on the model, the inspection may include:

• Optical image clarity.

• Zoom movement.

• Focusing operation.

• Binocular viewing adjustment.

• Trinocular port and accessory arrangement.

• Illumination operation when included.

• Mechanical stability.

• Appearance and assembly quality.

• Accessories and user documents.

• Packaging protection.

If the customer requires a special camera, adapter, label, plug, inspection report, or other document, we confirm the details before shipment. The exact delivery contents should always follow the order confirmation.

Production cycle

The production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard configurations can usually be arranged more quickly. Customized orders may require additional time for component matching, assembly, testing, and packing.

We prefer to confirm the configuration clearly at the beginning. This helps reduce changes during production and makes the delivery schedule easier to manage.

Payment and transportation

Payment is arranged according to the order agreement. A common arrangement is a deposit followed by the balance before shipment. The final terms depend on the quotation, contract, order quantity, and customer requirements.

Transportation can be arranged by air freight, sea freight, express delivery, or another suitable logistics method. We select the method according to the destination, package size, quantity, delivery schedule, and customer budget.

Packaging protection

Microscopes contain optical components and precision mechanical parts, so packaging is important. We use cushioning and dust-proof materials to protect the microscope. Each unit is packed in an individual box and then placed in reinforced export cartons.

The packaging method may be adjusted according to the product size, shipping route, order quantity, and customer requirements. We also check the packing list, shipping marks, and documents before dispatch.

8. Why Choose Huaguang for a Trinocular Soldering Microscope

When buying an industrial microscope, I believe the supplier should provide more than a product photo and a short specification list. The supplier should understand the application, explain the configuration clearly, communicate during production, and provide practical support after delivery.

Ningbo Huaguang Precision Instrument Co., Ltd. is located in Haishu District, Ningbo. We are engaged in educational microscopes, industrial inspection microscopes, professional jewelry inspection microscopes, optical components, and precision injection molding.

Our products are exported to more than 20 countries and regions, including America, Brazil, Germany, the Netherlands, and Japan. We understand that international customers may have different requirements for packaging, electrical configuration, documents, delivery, and product labeling.

Our company information states that we have been certified to the ISO9001 quality management system. It also states that our products have CE and RoHS certifications. The exact certificate scope, certificate validity, product model, and applicable documents should be confirmed for the specific order.

Our credo is “Nothing is perfect only better and better.” We take this as a practical working idea. Improvement may come from a better optical arrangement, smoother focusing, clearer communication, stronger packaging, or a more suitable accessory combination.

Before recommending a trinocular zoom stereo microscope for soldering, we usually consider the following questions:

• What type of PCB or electronic component will be inspected?

• What is the approximate size of the sample?

• Will the operator solder or repair under the microscope?

• How much working distance is required?

• Is direct binocular viewing required?

• Is a camera or monitor needed?

• Will the image be used for training or documentation?

• What lighting conditions are available?

• How many units are required?

• Is the order standard or customized?

• What delivery destination and schedule are expected?

These questions help us avoid recommending a microscope based only on the highest magnification. The best configuration should match the real working environment.

Frequently Asked Questions

What are 0.7X-5.0X Trinocular Zoom Stereo Mcroscopes for Soldering?

They are stereo microscopes with a 0.7X-5.0X zoom objective range, binocular viewing, and a third optical port for a compatible camera. They are designed for soldering, PCB inspection, electronics assembly, repair, and other detailed observation tasks.

What does the 0.7X-5.0X range mean?

It describes the zoom objective range. The final total magnification depends on the eyepieces and any auxiliary lenses used with the microscope. The exact total magnification should be confirmed in the product specification.

Why is a trinocular microscope useful for soldering?

The binocular eyepieces support direct three-dimensional viewing, while the third optical port can connect to a camera. This allows the operator to inspect the board directly and also record or display the image when needed.

Can the microscope be used for PCB repair?

Yes. It can be suitable for PCB repair, solder joint inspection, component replacement, connector checking, and electronic assembly. The correct stand, working distance, lighting, and camera arrangement depend on the repair task.

Can I connect a camera to the microscope?

The trinocular design is intended to support a compatible camera system. The camera adapter, thread, sensor size, software, and optical path should be confirmed before purchase.

Is higher magnification always better for soldering?

No. Higher magnification provides a closer view but reduces the field of view and may limit working space. For soldering, a balanced combination of magnification, working distance, clarity, lighting, and stability is usually more useful.

What lighting is suitable for PCB inspection?

Incident lighting is commonly used for solid PCB surfaces, but the best lighting depends on the board color, solder finish, component shape, and reflection level. A ring light or another lighting accessory may be selected according to the application.

Can the microscope be used for jewelry inspection?

Yes. The stereo optical system is suitable for observing jewelry surfaces, stone settings, engraving, polishing marks, and small assembly details. Lighting and magnification should be selected according to the jewelry material and inspection goal.

What is the production cycle?

The production cycle depends on the microscope model, optical configuration, accessories, order quantity, and customization requirements. Standard models can usually be arranged faster than customized orders.

What do you check before shipment?

We check the agreed configuration, optical performance, zoom and focusing operation, mechanical function, accessories, appearance, and packaging. Additional inspection documents can be discussed before production.

How is the microscope packaged?

We use cushioning and dust-proof materials, individual boxes, and reinforced export cartons. The exact packing method may be adjusted according to the product model and transportation requirements.

What payment terms are available?

Payment follows the order agreement. A common arrangement is a deposit and balance before shipment. The final terms are confirmed in the quotation and contract.

How can the microscope be shipped?

We can arrange air freight, sea freight, express delivery, or another suitable logistics method according to the destination, quantity, delivery schedule, and customer requirements.

Conclusion

Our 0.7X-5.0X Trinocular Zoom Stereo Mcroscopes for Soldering are designed for users who need clear stereo observation, flexible zoom control, comfortable binocular viewing, and camera connection options. They can support PCB inspection, soldering, electronic repair, component assembly, jewelry inspection, precision machinery, laboratories, education, and quality control.

I believe the best microscope is not simply the one with the largest number on the specification sheet. It is the one that fits the sample, gives the operator enough working space, keeps the image stable, and supports the actual inspection process.

At Ningbo Huaguang Precision Instrument Co., Ltd., we focus on practical microscope solutions, stable product quality, clear communication, and dependable service. If you are selecting a trinocular zoom stereo microscope for soldering, we recommend confirming the PCB size, inspection detail, working distance, lighting, camera requirement, stand, accessories, quantity, and delivery conditions before placing the order.

For the exact configuration and current availability of our 0.7X-5.0X trinocular zoom stereo microscope, please contact us with your application details. We can help you review the requirements and confirm a suitable product arrangement.

Technical Reference Sources

• General stereo microscope principles and optical design references from established microscope manufacturers such as Leica Microsystems and Evident Scientific.

• Published stereo microscope product specifications from manufacturers including HOZAN, Euromex, BOECO, and other optical instrument suppliers.

• General guidance on working distance, field of view, magnification, binocular observation, and camera-connected microscope systems.
